Brass Wet-Wash Replaceable Mesh Sieves

No. 200 Replaceable Mesh Wet-Wash Sieve, 8x4in

No. 200 Replaceable Mesh Wet-Wash Sieve, 8x4in

Model: WT-204
$256.0000
Price: $256.00
No. 200 Replaceable Mesh Wet-Wash Sieve, 8x6in

No. 200 Replaceable Mesh Wet-Wash Sieve, 8x6in

Model: WT-206
$256.0000
Price: $256.00
No. 325 Replaceable Mesh Wet-Wash Sieve, 8x4in

No. 325 Replaceable Mesh Wet-Wash Sieve, 8x4in

Model: WT-324
$251.0000
Price: $251.00
No. 325 Replaceable Mesh Wet-Wash Sieve, 8x6in

No. 325 Replaceable Mesh Wet-Wash Sieve, 8x6in

Model: WT-326
$251.0000
Price: $251.00

Replaceable Mesh Wet-Wash Sieves are used for fines content determinations and wet-wash sieving procedures. Gilson’s line offers interchangeable screens that can be replaced quickly when worn beyond acceptable limits, saving considerable expense.

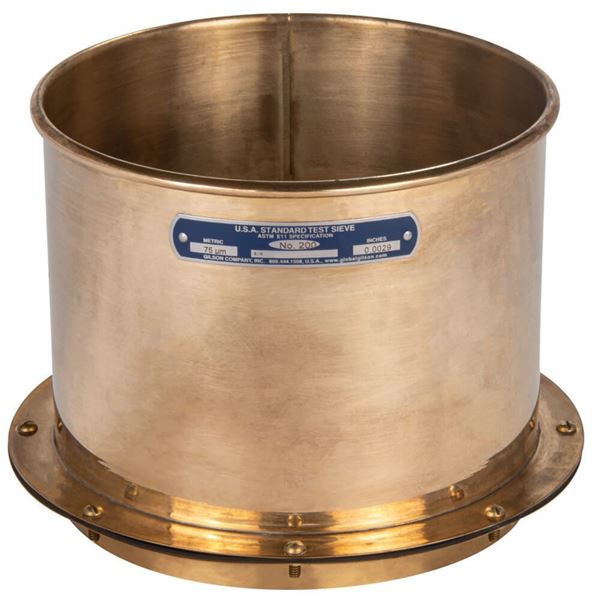

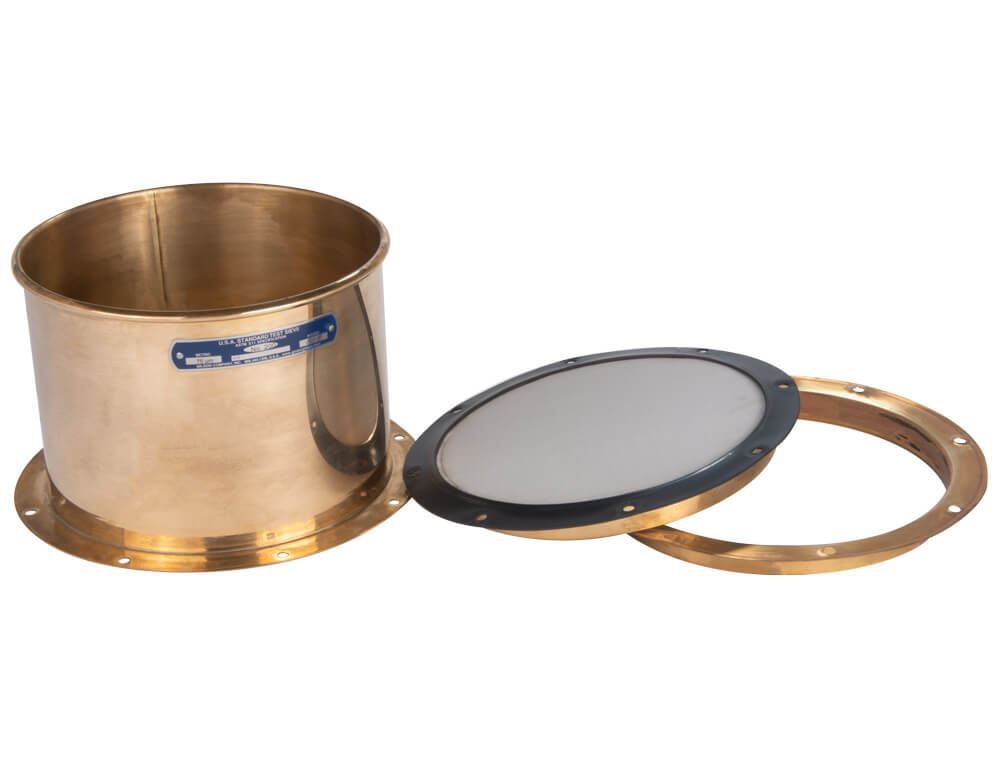

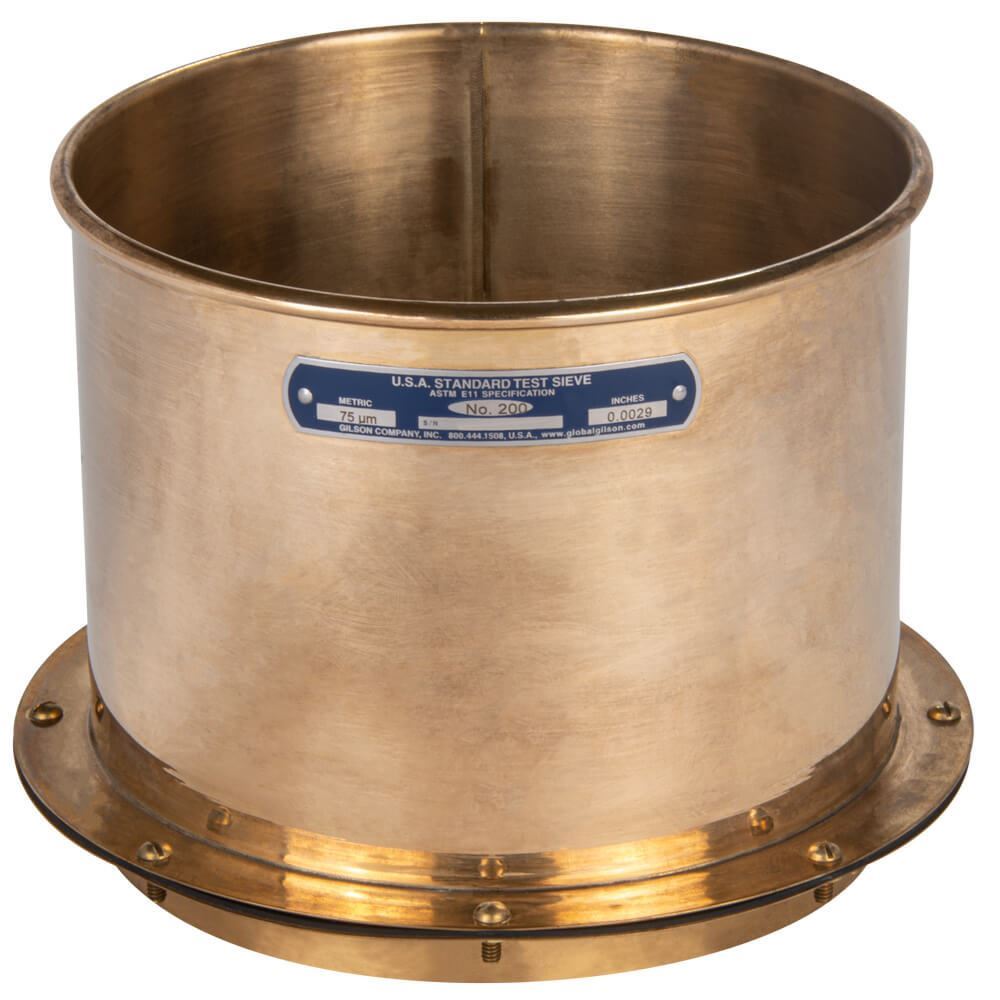

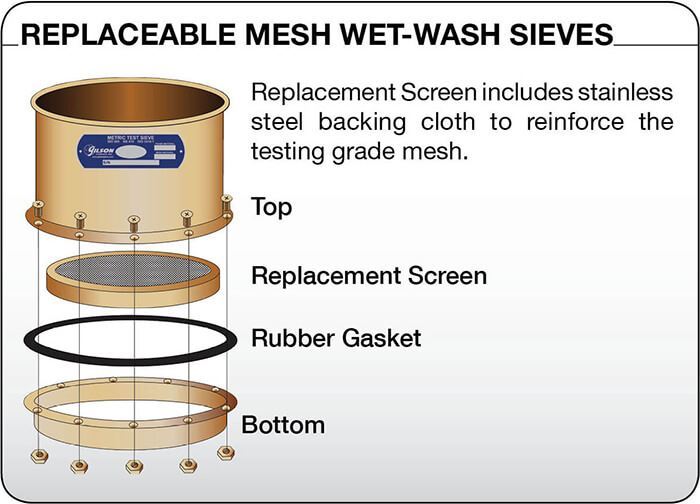

Unique cartridge assemblies combine ASTM E11 testing-grade stainless steel wire cloth with sturdy backup cloth for long service life and replacement convenience. Replacement screens are secured by a rubber gasket and stainless steel fasteners. 8in (203mm) diameter brass frames nest with conventional sieves and pans and are available in 4in (102mm) or 6in (152mm) heights.

WT-204 frame dimensions are 8x4in (203 x 101mm) Dia.xH with stainless steel ASTM E11 No. 200 (75µm) mesh opening size with a backup cloth.

WT-206 frame dimensions are 8x6in (203 x 152mm) Dia.xH with stainless steel ASTM E11 No. 200 (75µm) mesh opening size with a backup cloth.

WT-324 frame dimensions are 8x4in (203 x 101mm) Dia.xH with stainless steel ASTM E11 No. 325 (45µm) mesh opening size with a backup cloth.

WT-326 frame dimensions are 8x6in (203 x 152mm) Dia.xH with stainless steel ASTM E11 No. 325 (45µm) mesh opening size with a backup cloth.

Features:

  • Optimal for fines content determinations and wet-wash sieving procedures
  • Compliant with ASTM E11
  • Interchangeable screens are easily replaceable for cost savings

Included Items:

  • No. 200 or No. 325 Replaceable Mesh Wet-Wash Sieve (8x4in or 8x6in)
  • Certificate of Conformance to ASTM E11 requirements

Accessories:

  • Replacement Screens available as a replacement for worn or damaged mesh includes backup cloth.
Cloth Material Stainless Steel
ASTM E11 Opening Size

WT-204 & WT-324: No.200 (75µm)

WT-206 & WT-326: No. 325 (45µm)

Sieve Frame Diameter 8in (203mm)
Overall Frame Height

WT-204 & WT-324: 4in (101mm)

WT-206 & WT-326: 6in (152mm)

Material Brass
Backing Cloth Included Yes
Estimated Shipping Weight

WT-204: 2.0lb (0.91kg)

WT-206: 2.0lb (0.91kg)

WT-324: 4.0lb (1.81kg)

WT-326: 4.0lb (1.81kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Cloth Material Stainless Steel
ASTM E11 Opening Size

WT-204 & WT-324: No.200 (75µm)

WT-206 & WT-326: No. 325 (45µm)

Sieve Frame Diameter 8in (203mm)
Overall Frame Height

WT-204 & WT-324: 4in (101mm)

WT-206 & WT-326: 6in (152mm)

Material Brass
Backing Cloth Included Yes
Estimated Shipping Weight

WT-204: 2.0lb (0.91kg)

WT-206: 2.0lb (0.91kg)

WT-324: 4.0lb (1.81kg)

WT-326: 4.0lb (1.81kg)

Meets Standard(s):
