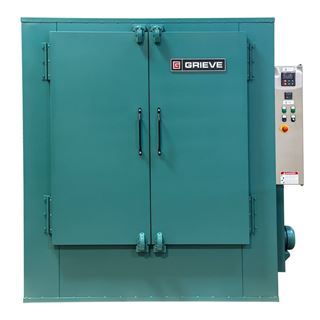

77.9ft³ Large Shelf Oven, 550°F Max

77.9ft³ Electric Large Shelf Oven, 550°F Max (230V / 3-Phase / 60Hz)

77.9ft³ Electric Large Shelf Oven, 550°F Max (230V / 3-Phase / 60Hz)

Model: BO-65EB
$22874.0000
Price: $22,874.00
77.9ft³ Electric Large Shelf Oven, 550°F Max (460V / 3-Phase / 60Hz)

77.9ft³ Electric Large Shelf Oven, 550°F Max (460V / 3-Phase / 60Hz)

Model: BO-65EC
$23295.0000
Price: $23,295.00
77.9ft³ Gas Large Shelf Oven, 550°F Max (230V / 3-Phase / 60Hz)

77.9ft³ Gas Large Shelf Oven, 550°F Max (230V / 3-Phase / 60Hz)

Model: BO-65GB
$32036.0000
Price: $32,036.00
77.9ft³ Gas Large Shelf Oven, 550°F Max (460V / 3-Phase / 60Hz)

77.9ft³ Gas Large Shelf Oven, 550°F Max (460V / 3-Phase / 60Hz)

Model: BO-65GC
$33411.0000
Price: $33,411.00

77.9ft³ Large Shelf Oven has double-door access to 30in (762mm) deep shelves and an exterior depth of 46in (1,168mm). They are available in electric or gas-fired models with forced-air convection, a 77.9ft³ (2,206L) capacity, and operate on 230V or 460V three-phase power supplies. The oven comes with two reinforced 100lb (45.5kg) capacity nickel-plated wire shelves.

Other standard features include forced horizontal air-flow, LED indicating temperature controller, stainless steel interior walls with 4in (102mm) insulation, aluminized steel exterior, silicone rubber door gaskets, explosion-venting latches, adjustable air intake, and exhaust dampers, adjustable interior ductwork louvers to balance airflow, and built-in baffles to prevent radiant heat.

A side access control panel is UL-listed and houses the Watlow digital temperature controller, blower control push-button, on/off heat switch, adjustable over-temperature safety control, and pilot lights.

Features:

  • Maximum temperature 400°F (204°C)
  • Choose from Electric or Gas-Fired models
  • Forced air convection with ±2°C uniformity
  • Watlow digital temperature controller has the accuracy to the ±0.1% +1°
  • Type 304 stainless steel interior walls with 4in (102mm) insulation and aluminized steel exterior
  • LED indicating temperature controller
  • Accommodates eight shelves on 6in (152mm) centers
  • Heavy-duty doors with explosion-venting latches
  • The blower runs without heat for cooling
  • Adjustable air intake and exhaust dampers
  • Adjustable interior ductwork louvers to balance airflow
  • Built-in baffles prevent radiant heat loss
  • UL-listed side access control panel

Included Items:

  • 77.9ft³ Large Shelf Oven
  • Two reinforced 100lb (45.5kg) capacity nickel-plated wire shelves

Accessories:

Convection Forced-Air
Maximum Temperature 550°F (288°C)
Chamber Capacity 77.9ft³ (2,206L)
Uniformity ±3°C
Electrical

BO-65EB: 230V / 60Hz / 68 Amps

BO-65EC: 460V / 60Hz / 35 Amps

BO-65GB: 230V / 60Hz / 14 Amps

BO-65GC: 460V / 60Hz / 12 Amps

Chamber Dimensions 68 x 30 x 66in (173 x 77 x 168cm), WxDxH
Outside Dimensions 88 x 46 x 92in (224 x 117 x 234mm), WxDxH
Estimated Shipping Weight 3100.0lb (1406.16kg)
