46.9ft³ Large Shelf Oven, 550°F Max

46.9ft³ Electric Large Shelf Oven, 550°F Max (230V, 60Hz)

46.9ft³ Electric Large Shelf Oven, 550°F Max (230V, 60Hz)

Model: BO-61EB
$22757.0000
Price: $22,757.00
46.9ft³ Electric Large Shelf Oven, 550°F Max (460V, 60Hz)

46.9ft³ Electric Large Shelf Oven, 550°F Max (460V, 60Hz)

Model: BO-61EC
$23513.0000
Price: $23,513.00
46.9ft³ Gas Large Shelf Oven, 550°F Max (230V, 60Hz)

46.9ft³ Gas Large Shelf Oven, 550°F Max (230V, 60Hz)

Model: BO-61GB
$34026.0000
Price: $34,026.00
46.9ft³ Gas Large Shelf Oven, 550°F Max (460V, 60Hz)

46.9ft³ Gas Large Shelf Oven, 550°F Max (460V, 60Hz)

Model: BO-61GC
$35599.0000
Price: $35,599.00

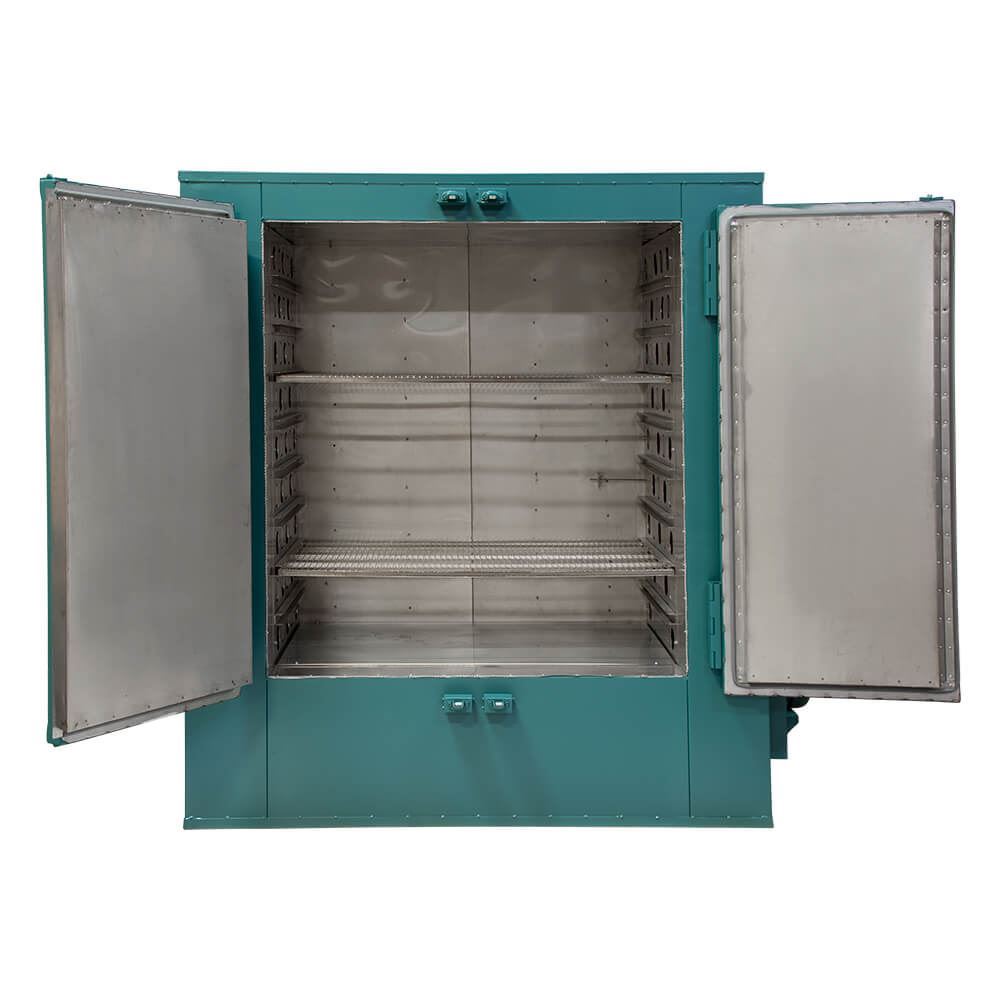

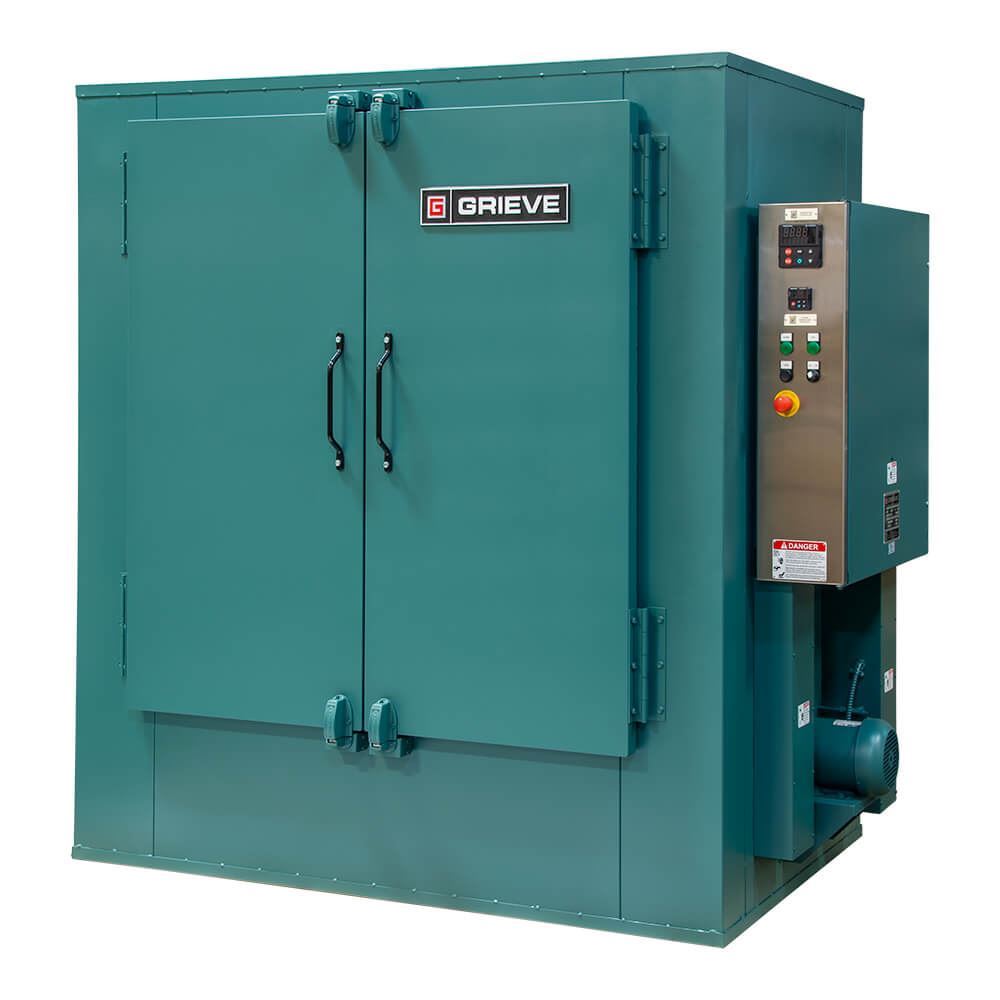

46.9ft³ Large Shelf Oven has double-door access to 30in (762mm) deep shelves and an exterior depth of 46in (1,168mm). They are available in electric or gas-fired models with forced-air convection, a 46.9ft³ (1,328L) capacity, and operate on 230V or 460V three-phase power supplies. The oven comes with two reinforced 100lb (45.5kg) capacity nickel-plated wire shelves and a one-year warranty.

Other standard features include forced horizontal airflow, LED indicating temperature controller, stainless steel interior walls with 4in (102mm) insulation, aluminized steel exterior, silicone rubber door gaskets, explosion-venting latches, adjustable air intake, and exhaust dampers, adjustable interior ductwork louvers to balance airflow, and built-in baffles to prevent radiant heat.

A side access control panel is UL-listed and houses the Watlow digital temperature controller, blower control push-button, on/off heat switch, adjustable over-temperature safety control, and pilot lights.

Features:

  • Maximum temperature 550°F (288°C)
  • Choose from electric or gas-fired models
  • Digital temperature controller with ±0.3% accuracy
  • Type 304 stainless steel interior walls with 4in (102mm) insulation
  • Accommodates eight shelves on 6in (152mm) centers
  • Heavy-duty doors with explosion-venting latches
  • The blower runs without heat for cooling
  • UL-listed side access control panel

Included Items:

  • 46.9ft³ Large Shelf Oven
  • Two reinforced 100lb (45.5kg) capacity nickel-plated wire shelves
  • One-year warranty

Accessories:

Convection Forced Air
Maximum Temperature 550°F (288°C)
Chamber Capacity 46.9ft³ (1,328L)
Uniformity ±3°C at 260°C
Electrical

BO-61EB: 230V, 60Hz, 42.9 Amps, 15kW

BO-61EC: 460V, 60Hz, 21.9 Amps, 15kW

BO-61GB: 230V, 60Hz, 4.6 Amps, 75,000 BTUH

BO-61GC: 460V, 60Hz, 2.8 Amps, 75,000BTUH

Chamber Dimensions 50 x 30 x 54in (1,270 x 762 x 1,371.6mm), WxDxH
Product Dimensions

70 x 46 x 80in (1,778 x 1,168.4 x 2,032mm), WxDxH

Note: Add 10in (254mm) width to allow for blower and control panel on right side. For gas models, add additional 15in (381mm) to left side for burner.

Estimated Shipping Weight 2506.0lb (1136.72kg)
