Jar Mill, 3 Tier

3 Tier Jar Mill (115V/ 50-60Hz)

3 Tier Jar Mill (115V/ 50-60Hz)

Model: LC-95
$8693.0000
Price: $8,693.00

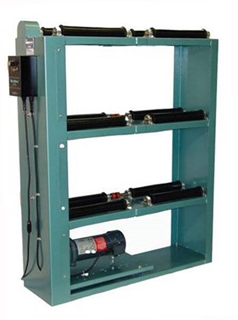

3 Tier Jar Mill (230V/ 50Hz)

3 Tier Jar Mill (230V/ 50Hz)

Model: LC-95F
$8693.0000
Price: $8,693.00

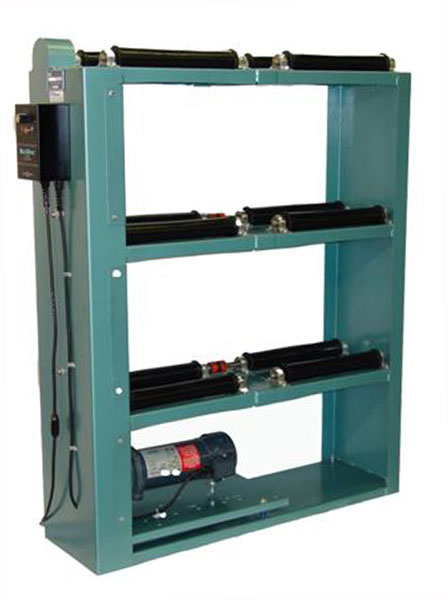

The LC-95 Jar Mills series are 3-tier floor-model units. They can accommodate one to six jars centered during operations by neoprene rollers, with a maximum feed capacity of 8.4L. Constructed with welded steel frames, these units have roller chain drives and sealed ball bearings for a long service life. Models are available that operate on either 115V/50-60Hz or 230V/50Hz.

The LC-95 series uses Roalox Porcelain or High Alumina Grinding Jars.

Grinding Jars and Grinding Media are required with Jar Mills and sold separately.

Features:

  • Fully enclosed DC motor
  • Adjustable speed settings from 20-300rpm
  • 2in (50.8mm) diameter neoprene rollers keep grinding jars centered
  • 1mm particle topsize; final size 1-50µm

Included Items:

  • LC-95 or LC-95F Jar Mill

Accessories:

Particle Topsize 1mm
Final Size 1-50µm
Max. Feed Capacity 37.5L
Grinding Elements Jars/Media
Grinding Media Burundum, Zirconia
Application Ores, Ceramics, Chemicals
Electrical

LC-95: 115V / 50-60Hz / 11.4Amps

LC-95F: 230V / 50Hz / 5.7Amps

Product Dimensions 40 x 12 x 50in (1,016 x 305 x 1,270mm), WxDxH
Estimated Shipping Weight 255.0lbs (115.67kg)
