Jar Mill, 1 Tier

1 Tier Jar Mill (115V / 50-60Hz)

1 Tier Jar Mill (115V / 50-60Hz)

Model: LC-91
$3830.5000
Price: $3,830.50
1 Tier Jar Mill (230V / 50Hz)

1 Tier Jar Mill (230V / 50Hz)

Model: LC-91F
$3890.0000
Price: $3,890.00

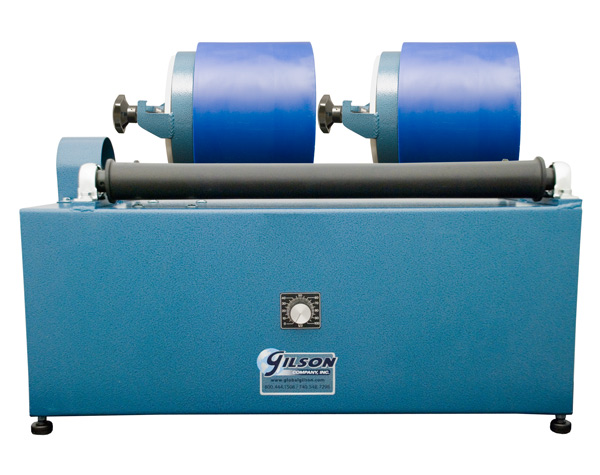

LC-91 Jar Mills are a single tier, bench style unit and accommodate one or two Grinding Jars on 2in (50.8mm) neoprene rollers. Rollers are configured to keep jars centered during operation and spacing adjusts easily to accommodate jars from 2 to 15in (51 to 381mm) diameter. Maximum batch capacity is 12.5L. The bench units have welded steel frames and roller chain drives. The sealed ball bearings offer a long service life. Uses Roalox™ Porcelain or High Alumina Grinding Jars. LC-91 models are available to operate in 115V/50-60Hz or 230V/50Hz. Grinding Jars and Grinding Media are required for use, and are sold separately.

Features:

  • Fully enclosed 1/4hp DC motor
  • Adjustable speed settings range from 20-300rpm
  • 2in (50.8mm) diameter neoprene-covered rollers are configured to keep jars centered
  • 1mm particle topsize; final size 1-50µm

Included Items:

  • 1Tier, Bench Jar Mill

Accessories:

Maximum Particle Size 0.04in (1mm)
Final Size 1-50µm
Max. Feed Capacity 27.5lb (12.5kg)
Grinding Elements Jars/Media
Application Ores, Ceramics, Chemicals
Electrical

LC-91: 115V / 50-60Hz / 4.05Amps

LC-91F: 230V / 50Hz / 2.03Amps

Product Dimensions 30 x 13 x 16in (762 x 330 x 406mm), WxDxH
Estimated Shipping Weight 90.0lbs (40.82kg)
