Grinding Bowls for Classic Planetary Mills

500mL Classic Grinding Bowl, Agate

500mL Classic Grinding Bowl, Agate

Model: FTA-301
$12066.0000
Price: $12,066.00
500mL Classic Grinding Bowl, Sintered Corundum

500mL Classic Grinding Bowl, Sintered Corundum

Model: FTA-302
$6353.0000
Price: $6,353.00
500mL Classic Grinding Bowl, Zirconium Oxide

500mL Classic Grinding Bowl, Zirconium Oxide

Model: FTA-303
$10895.0000
Price: $10,895.00
500mL Classic Grinding Bowl, Hardened Stainless Steel

500mL Classic Grinding Bowl, Hardened Stainless Steel

Model: FTA-304
$4530.5000
Price: $4,530.50
250mL Classic Grinding Bowl, Agate

250mL Classic Grinding Bowl, Agate

Model: FTA-311
$5100.0000
Price: $5,100.00
250mL Classic Grinding Bowl, Sintered Corundum

250mL Classic Grinding Bowl, Sintered Corundum

Model: FTA-312
$4427.0000
Price: $4,427.00
250mL Classic Grinding Bowl, Zirconium Oxide

250mL Classic Grinding Bowl, Zirconium Oxide

Model: FTA-313
$9225.0000
Price: $9,225.00
250mL Classic Grinding Bowl, Hardened Stainless Steel

250mL Classic Grinding Bowl, Hardened Stainless Steel

Model: FTA-314
$3190.0000
Price: $3,190.00
250mL Classic Grinding Bowl, Hardmetal Tungsten Carbide

250mL Classic Grinding Bowl, Hardmetal Tungsten Carbide

Model: FTA-315
$12336.0000
Price: $12,336.00
80mL Classic Grinding Bowl, Agate

80mL Classic Grinding Bowl, Agate

Model: FTA-321
$3636.0000
Price: $3,636.00
80mL Classic Grinding Bowl, Sintered Corundum

80mL Classic Grinding Bowl, Sintered Corundum

Model: FTA-322
$3505.5000
Price: $3,505.50
80mL Classic Grinding Bowl, Zirconium Oxide

80mL Classic Grinding Bowl, Zirconium Oxide

Model: FTA-323
$7216.0000
Price: $7,216.00
80mL Classic Grinding Bowl, Hardened Stainless Steel

80mL Classic Grinding Bowl, Hardened Stainless Steel

Model: FTA-324
$2615.5000
Price: $2,615.50
80mL Classic Grinding Bowl, Hardmetal Tungsten Carbide

80mL Classic Grinding Bowl, Hardmetal Tungsten Carbide

Model: FTA-325
$8741.0000
Price: $8,741.00

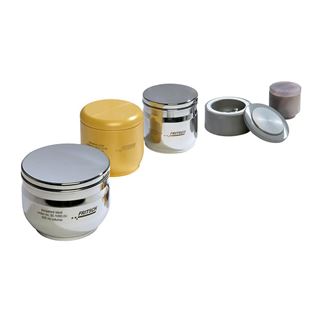

Classic Grinding Bowls are used with the Fritsch Classic Planetary Mill to contain the grinding balls and material to be ground. Bowls are available in a variety of materials to suit the needs of each grinding application. Each bowl includes a lid and seal ring.

Grinding bowl material must be harder than the material to be ground. Multi-station mills should be operated with balanced loads. Bowls, balls, and sample volume should be consistent at each grinding station. It is recommended that fine sand material, such as play sand, be placed inside the jar of equal total mass and used as a counterweight. Grinding Balls are purchased separately.

FTA-301, FTA-311, and FTA-321 agate grinding bowls are suitable for soft to medium-hard samples.

FTA-302, FTA-312, and FTA-322 sintered corundum grinding bowls are suitable for medium-hard, fibrous samples.

FTA-303, FTA-312, and FTA-322 zirconium oxide grinding bowls are suitable for fibrous, abrasive samples.

FTA 304, FTA-314, and FTA-324 hardened stainless steel grinding bowls are suitable for hard, medium-hard, brittle samples.

FTA-315 and FTA 325 hardmetal tungsten carbide grinding bowls have steel casing and are suitable for hard, abrasive samples.

Grinding Bowls
MaterialBowl Size, mL (Capacity)
500 (80–225)250 (30–125)80 (10–30)
Agate (SiO2) FTA-301 FTA-311 FTA-321
Sintered Corundum (AI2O3) FTA-302 FTA-312 FTA-322
Zirconium Oxide (ZrO2) FTA-303 FTA-313 FTA-323
Hardened Stainless Steel (Fe-Cr) FTA-304 FTA-314 FTA-324
Hardmetal Tungsten Carbide (WC) FTA-315 FTA-325

Features

  • Bowls are available in five different materials
  • Safe-Lock clamping ensures safe tensioning of bowls
  • Use of single 80mL bowl is possible with platform adapter

Included Items

  • Grinding Bowl
  • Lid
  • Seal Ring

Accessories

  • Grinding Balls are available in a variety of materials and range in diameter size from 0.6–40mm.
  • Platform Adapter allows one 80mL grinding bowl to be used in the milling chamber.
Material

FTA-301, FTA-311, and FTA-321: Agate

FTA-302, FTA-312, and FTA-322: Sintered Corundum

FTA-303, FTA- 312, and FTA-322: Zirconium Oxide

FTA 304, FTA-314, and FTA-324: Hardened Stainless Steel

FTA-315, FTA 325: Hardmetal Tungsten Carbide

Capacity

FTA-301, FTA-302, FTA-303, FTA-304: 500mL

FTA-311, FTA-312, FTA-313, FTA-314, FTA-315: 250mL

FTA-321, FTA-322, FTA-323, FTA-324, FTA-325: 80mL

Estimated Shipping Weight

FTA-301: 9lb (3.9kg)

FTA-302: 5.7lb (2.6kg)

FTA-303: 8.8lb (4kg)

FTA-304: 9.5lb (4.3kg)

FTA-311: 5.5lb (2.5kg)

FTA-312: 4.6lb (2.1kg)

FTA-313: 7.1lb (3.2kg)

FTA-314: 7.13lb (3.3kg)

FTA-315: 11lb (5kg)

FTA-321: 3.4lb (1.55kg)

FTA-322: 2.2lb (1kg)

FTA-323: 3.1lb (1.4kg)

FTA-324: 4.2lb (1.9kg)

FTA-325: 5.5lb (2.5kg)
