Diameter Measuring Pi Tape

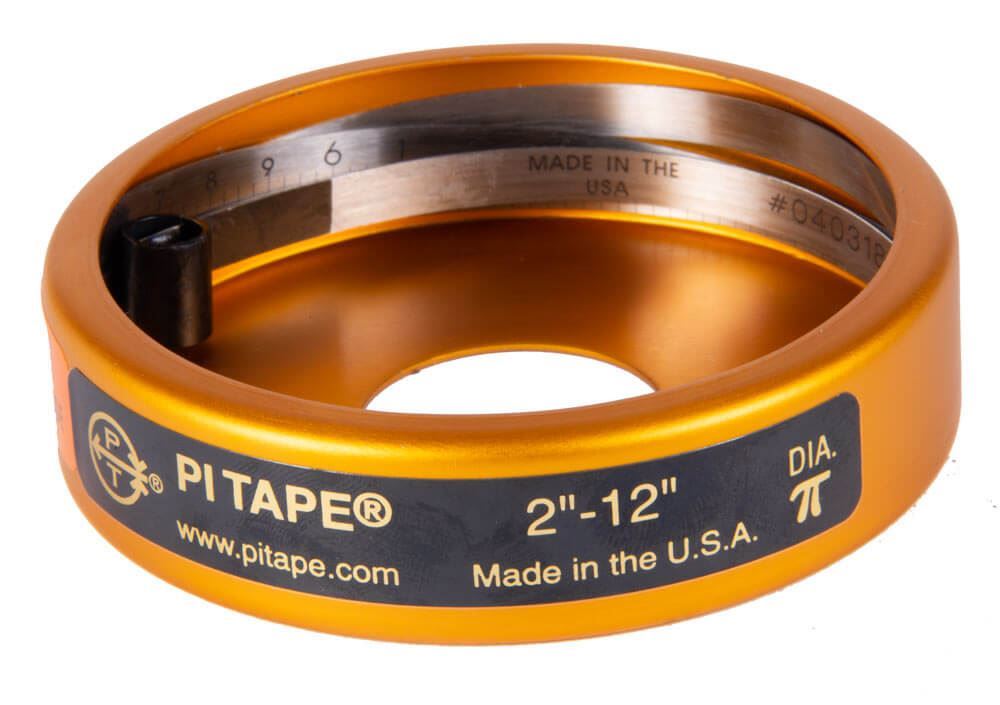

Pi Tape Measure (Inches)

Pi Tape Measure (Inches)

Model: HM-162
$131.0000
Price: $131.00

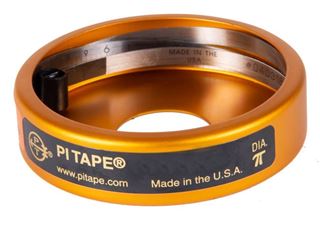

Pi Tape Measure (Metric)

Pi Tape Measure (Metric)

Model: HM-162M
$209.5000
Price: $209.50

Pi Tape Measure gives a quick direct single reading of average diameter with micrometer accuracy simply by placing tape around the periphery. It is used to measure round or out-of-round specimens of concrete, soils, and asphalt. The 0.01n (0.25mm) thick spring steel tape has graduations and numerals engraved and acid-etched on a ground surface. Vernier scale permits readings to .001in (.025mm) diameter; accuracy to ±0.001in, furnished with a certificate of calibration traceable to NIST.

HM-162 is graduated in inches, suitable for measuring diameters from 2 to 12in with a ±0.001in accuracy.

HM-162M is Metric and reads from 50 to 300mm with a ±0.025mm accuracy.

Features:

  • Available in English and Metric styles
  • Spring steel construction with engraved graduations and numerals

Included Items:

  • Pi Tape Measure (Inches or Metric)
  • NIST-Traceable Certificate of Calibration
Thickness 0.01in (0.254mm)
Diameter 2 to 12in (50 to 300mm)
Accuracy ±.0.001in (0.025mm)
Estimated Shipping Weight 1.0lb (0.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Thickness 0.01in (0.254mm)
Diameter 2 to 12in (50 to 300mm)
Accuracy ±.0.001in (0.025mm)
Estimated Shipping Weight 1.0lb (0.45kg)
