6in Cube Test Sets

6in Cube Test Set for 250 Series Compression Machines

6in Cube Test Set for 250 Series Compression Machines

Model: MCA-8
$1547.0000
Price: $1,547.00
6in Cube Test Set For 300 Series Compression Machines

6in Cube Test Set for 300 Series Compression Machines

Model: MCA-3
$1094.0000
Price: $1,094.00
6in Cube Test Set For 400 / 500 Series Compression Machines

6in Cube Test Set for 400 / 500 Series Compression Machines

Model: MCA-9
$1138.0000
Price: $1,138.00

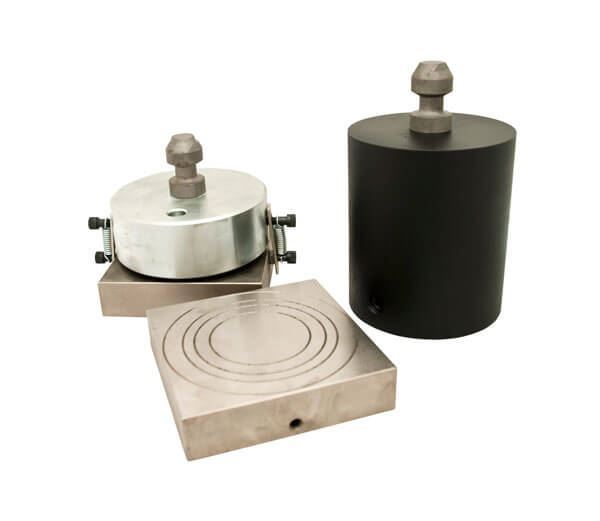

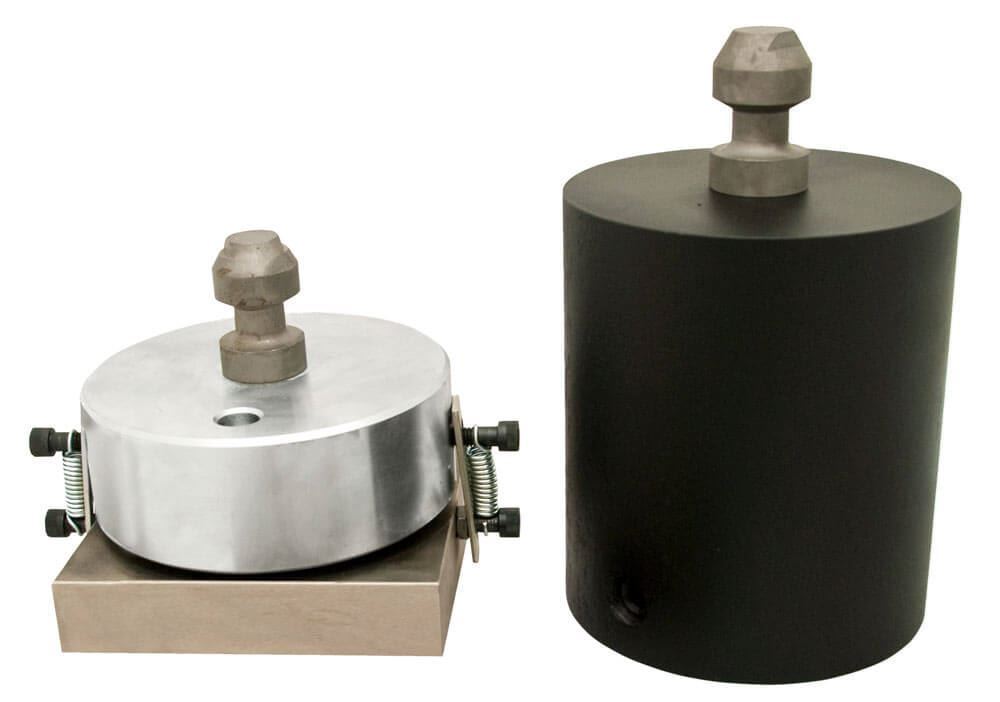

6in Cube Test Set for testing 6in (152mm) concrete cubes and cylinders with Concrete Compression Testing Machines. The set includes a spherically-seated upper platen assembly and spacer for the 250, 300, 400 and 500 series testing machines. The platen is hard nickel plated to resist wear and corrosion, and has a 6.5in (152mm) bearing block with concentric circles that allow easy centering of cylinders. The platen assembly attaches to Compression Machine by a locking stem system.

Test Set for the 250 series also comes with a 6.5in (152mm) square lower platen.

Features:

  • Equipped with pedestal and spherically-seated upper platen
  • Rugged steel construction
  • Platen resists corrosion and wear

Included Items:

  • 6in Cube Test Set for 250 Series Concrete Compression Machines with 6.5in square lower platen, or
    6in Cube Test Set for 300 or 400/500 Series Concrete Compression Machines




Specimen Size 6 x 6 x 6in (152 x 152 x 152mm), WxDxH
Upper Platen Dimensions 6.5 x 6.5 x 4.13in (165 x 165 x 105mm), WxDxH
Lower Platen Dimensions 6.5 x 6.5 x 1.5in (165 x165 x 38mm), WxDxH
Product Dimensions 6 x 7in (152 x 178mm), Dia. x H
Estimated Shipping Weight

MCA-8: 121.0lbs (54.89kg)

MCA-3: 100.0lbs (45.36kg)

MCA-9: 101.0lbs (45.81kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Specimen Size 6 x 6 x 6in (152 x 152 x 152mm), WxDxH
Upper Platen Dimensions 6.5 x 6.5 x 4.13in (165 x 165 x 105mm), WxDxH
Lower Platen Dimensions 6.5 x 6.5 x 1.5in (165 x165 x 38mm), WxDxH
Product Dimensions 6 x 7in (152 x 178mm), Dia. x H
Estimated Shipping Weight

MCA-8: 121.0lbs (54.89kg)

MCA-3: 100.0lbs (45.36kg)

MCA-9: 101.0lbs (45.81kg)

Meets Standard(s):
