0.6ft³ Quincy Analog Lab Oven, 450°F Max (Forced-Air)

0.6ft³ Quincy Analog Lab Oven, 450°F Max (120V, 50/60Hz)

0.6ft³ Quincy Analog Lab Oven, 450°F Max (120V, 50/60Hz)

Model: BO-110
$900.0000
Price: $900.00
0.6ft³ Quincy Analog Lab Oven, 450°F Max (230V, 50/60Hz)

0.6ft³ Quincy Analog Lab Oven, 450°F Max (230V, 50/60Hz)

Model: BO-110F
$930.0000
Price: $930.00

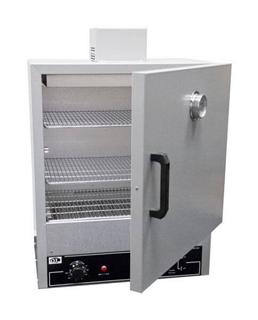

Quincy Lab Ovens has a 0.6ft³ (17L) capacity with forced-air convection, bimetallic thermostat controller, 450°F (232°C) maximum temperature, and ±3°C uniformity for drying and controlled heating applications. Single-door with a high-impact thermoplastic handle, these ovens have one fixed and two adjustable shelves; additional shelves are sold as optional accessories. Each model comes with a two-year warranty.

The control panel includes an illuminated On/Off rocker switch and Heat/Cycle pilot light. Cabinets are heavy steel double-wall construction; the painted exterior has a durable, scratch-resistant hammer-tone finish. The interior is corrosion-resistant aluminized steel, with one-inch high-density mineral wool insulation between the interior and exterior walls.

Forced-air convection models include a special fan and air transfer plenum that allows the oven to maintain a more uniform temperature, and a door-mounted dual-range °F/°C dial thermometer. Unique engineering features include energy-efficient, low-watt density Incoloy-sheathed elements that allow for quick run-up and recovery times.

BO-110 Quincy Lab Oven operates on 120V, 50/60Hz, and comes with a cord and NEMA 5-15P plug.

BO-110F Quincy Lab Oven operates on 230V, 50/60Hz electrical and comes with a cord and NEMA 6-15P plug.

Features:

  • 0.6ft³ (17L) capacity
  • 450°F (232°C) maximum temperature with ±3°C uniformity for drying and controlled heating applications
  • Bimetallic thermostat controller
  • Forced-Air convection
  • Special fan and air transfer plenum maintain a uniform temperature
  • Door-mounted dial thermometer
  • Energy-efficient, Incoloy sheathed elements for quick heat up
  • Three shelf capacity accommodates a variety of uses

Included Items:

  • 0.6ft³ Lab Oven (120V, 50/60Hz or 230V, 50/60Hz)
  • Three shelves
  • Cord and plug
  • Door-mounted dial thermometer
  • Two-year warranty

Accessories:

Convection Forced Air
Maximum Temperature 450°F (232°C)
Chamber Capacity 0.6ft³ (17L)
Uniformity ±3°C
Plug Rating

BO-110: NEMA 5-15P Plug

BO-110F: NEMA 6-15P Plug

Electrical

BO-110: 120V, 50/60Hz, 6.7 Amps

BO-110F: 230V, 50/60Hz, 3.7 Amps

Chamber Dimensions 12 x 10 x 9in (304.8 x 254 x 228.6mm), WxDxH
Product Dimensions 14 x 12 x 21in (355.6 x 304.8 x 533.4mm), WxDxH
Estimated Shipping Weight 51.0lb (23.13kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Convection Forced Air
Maximum Temperature 450°F (232°C)
Chamber Capacity 0.6ft³ (17L)
Uniformity ±3°C
Plug Rating

BO-110: NEMA 5-15P Plug

BO-110F: NEMA 6-15P Plug

Electrical

BO-110: 120V, 50/60Hz, 6.7 Amps

BO-110F: 230V, 50/60Hz, 3.7 Amps

Chamber Dimensions 12 x 10 x 9in (304.8 x 254 x 228.6mm), WxDxH
Product Dimensions 14 x 12 x 21in (355.6 x 304.8 x 533.4mm), WxDxH
Estimated Shipping Weight 51.0lb (23.13kg)
