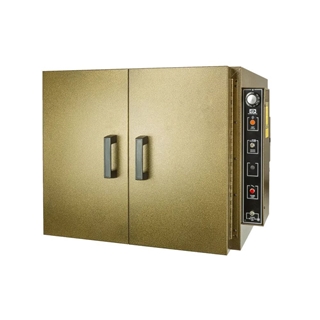

7.0ft³ Bench Oven, 450°F Max

BO-350 7.0ft³ (198L) Bench Oven has a 450°F maximum temperature, ±2.5°C uniformity for drying, and controlled heating applications. Full-width gasketed double doors feature high-impact “cool” handles, full-length piano hinges, and 2in (51mm) high-density mineral wool insulation.

The oven holds up to 11 shelves with 80lb (36kg) capacity that can be adjusted on 1.5in (38.1mm) centers and a hydraulic thermostat with a high/low switch controls heating and recovery rates for standard models. Incoloy-sheathed heating elements have low watt density and large 7/16in diameter for long service life. UL listed and CSA approved electrical components are 50/60Hz, one phase.

BO-350 operates at 120V and comes with a cord and NEMA 5-20P plug

BO-350F operates at 230V and comes with a NEMA 6-20P plug

BO-350S operates at 120V with a stainless steel interior and comes with a cord and NEMA 5-20P plug

BO-350SF operates at 230V with a stainless steel interior and comes with a NEMA 6-20P plug

Optional factory-installed BOA-5 12-Hour Timer for Bench and Lab Ovens to shut off operation at a preset time up to 12 hours. A Hold feature allows for continuous operation.

Features:

• 7.0ft³ (198L) capacity
• 450°F maximum temperature with ±2.5°C uniformity for drying and controlled heating applications
• 11 shelf capacity accommodates a variety of applications
• Simple high/low switch controls heating and recovery rates

Included Items:

• 7.0ft³ Bench Oven (115V or 230V), with or without stainless steel interior
• Two standard shelves
• Grounded 6ft (1.8m) cord with plug

Accessories:

• BOA-4 Exhaust Chamber Adapter attaches to oven back for venting through an exterior wall
• BOA-1 Heavy-Duty Shelf for Bench Ovens speeds up testing by increasing sample capacity
• BOA-5 12-Hour Timer for Bench and Lab Ovens shuts off the oven at selected elapsed time and has a hold feature
• BOA-2 Bench Oven Floor Cabinet enables positioning of Oven at convenient working height
• BOA-3 Bench Oven Floor Stand makes it easy to stack or mount oven
• BOA-7 Spirit-Filled Thermometer with Grommet for Bench and Lab Ovens is a non-mercury precision alternative with non-toxic indicator
• BOA-6 Dual-Range In-Door Thermometer provides verification of chamber temperature during operation
