6.6ft³ Bench Oven, 550°F Max (Digital Controller)

6.6ft³ Bench Oven, 550°F Max Temperature, Digital Controller (230V/60Hz)

6.6ft³ Bench Oven, 550°F Max Temperature, Digital Controller (230V/60Hz)

Model: BO-550ER
$2065.0000
Price: $2,065.00
6.6ft³ Bench Oven, 550°F Max Temperature, Digital Controller (230V/50-60Hz)

6.6ft³ Bench Oven, 550°F Max Temperature, Digital Controller (230V/50-60Hz)

Model: BO-550ERF
$2112.5000
Price: $2,112.50
6.6ft³ Stainless Steel Interior Bench Oven, 550°F Max Temperature, Digital Controller (230V/60Hz)

6.6ft³ Stainless Steel Interior Bench Oven, 550°F Max Temperature, Digital Controller (230V/60Hz)

Model: BO-550ERS
$2335.5000
Price: $2,335.50
6.6ft³ Stainless Steel Interior Bench Oven, 550°F Max Temperature, Digital Controller (230V/50-60Hz)

6.6ft³ Stainless Steel Interior Bench Oven, 550°F Max Temperature, Digital Controller (230V/50-60Hz)

Model: BO-550ERSF
$2383.0000
Price: $2,383.00

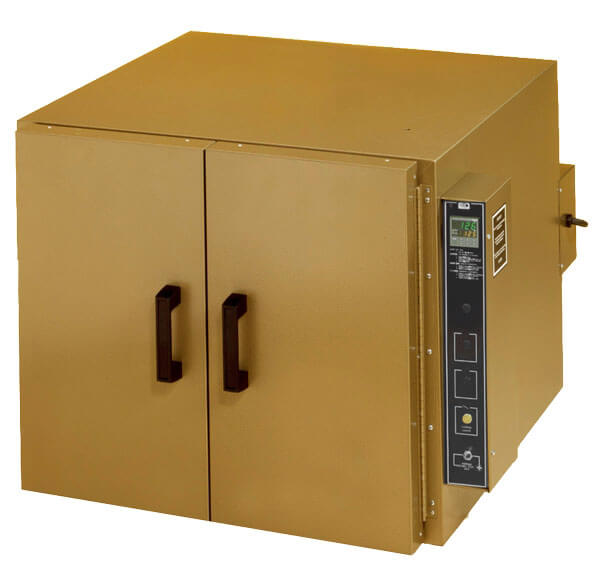

The BO-550ER forced-air convection Bench Oven has a 6.6ft3 (187L) capacity, 550°F maximum temperature and ±2.5°C uniformity for drying and controlled heating applications. These ovens are equipped with a digital controller.

Full-width gasketed double doors feature high-impact “cool” handles, full-length piano hinges, and 2in (51mm) high-density mineral wool insulation.

Oven holds up to 11 shelves with 80lb (36kg) capacity that can be adjusted on 1.5in centers and the PID Microprocessor Controller with digital display offers greater uniformity, repeatability and resolution. This precise microprocessor with a J-type thermocouple holds set temperatures accurately to ±1° F or C with improved chamber uniformity.

Control features include large easy-to-read dual LED display in °C or °F units, showing both set and process temperatures. Auto tune feature optimizes PID oven performance for various loads and applications. A simple On/Off control mode allows fast recovery times and processing of batch-style loads.

BO-550ER model operates at 230V/60Hz, while BO-550ERF operates at 230V/50-60Hz.

BO-550ERS is equipped with a factory-installed stainless steel interior and operates at 230V/60Hz. BO-550ERSF with factory installed stainless steel interior operates at 230V/50-60Hz.

Inquire for optional factory installed 12-Hour Timer for Bench and Lab Ovens to shut off operation at a preset time up to 12 hours. A Hold feature allows for continuous operation.

Features:

  • 6.6ft3 (187L) capacity
  • 500°F maximum temperature with ±2.5°C uniformity for drying and controlled heating applications
  • 11 shelf capacity accommodates variety of applications
  • Digital display Controller offers greater uniformity, repeatability and resolution

Included Items:

  • 6.6ft3 Bench Oven w/ Digital Controller (230V/60Hz or 230V/50-60Hz), with or without stainless steel interior
  • Two standard shelves
  • Grounded 6ft (1.8m) cord with plug

Accessories:

Convection Forced-Air
Uniformity ±2.5°C
Maximum Temperature 550°F (288°C)
Chamber Volume 6.6ft³ (187L)
Plug Rating NEMA-6-20P
Electrical 230V, 12.5 Amps, 3,000 Watts
Chamber Dimensions 26 x 23 x 20in (66 x 58 x 51cm), WxDxH
Product Dimensions 33 x 36 x 24in (84 x 91 x 61cm), WxDxH
Estimated Shipping Weight 195.0lbs (88.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Convection Forced-Air
Uniformity ±2.5°C
Maximum Temperature 550°F (288°C)
Chamber Volume 6.6ft³ (187L)
Plug Rating NEMA-6-20P
Electrical 230V, 12.5 Amps, 3,000 Watts
Chamber Dimensions 26 x 23 x 20in (66 x 58 x 51cm), WxDxH
Product Dimensions 33 x 36 x 24in (84 x 91 x 61cm), WxDxH
Estimated Shipping Weight 195.0lbs (88.45kg)
