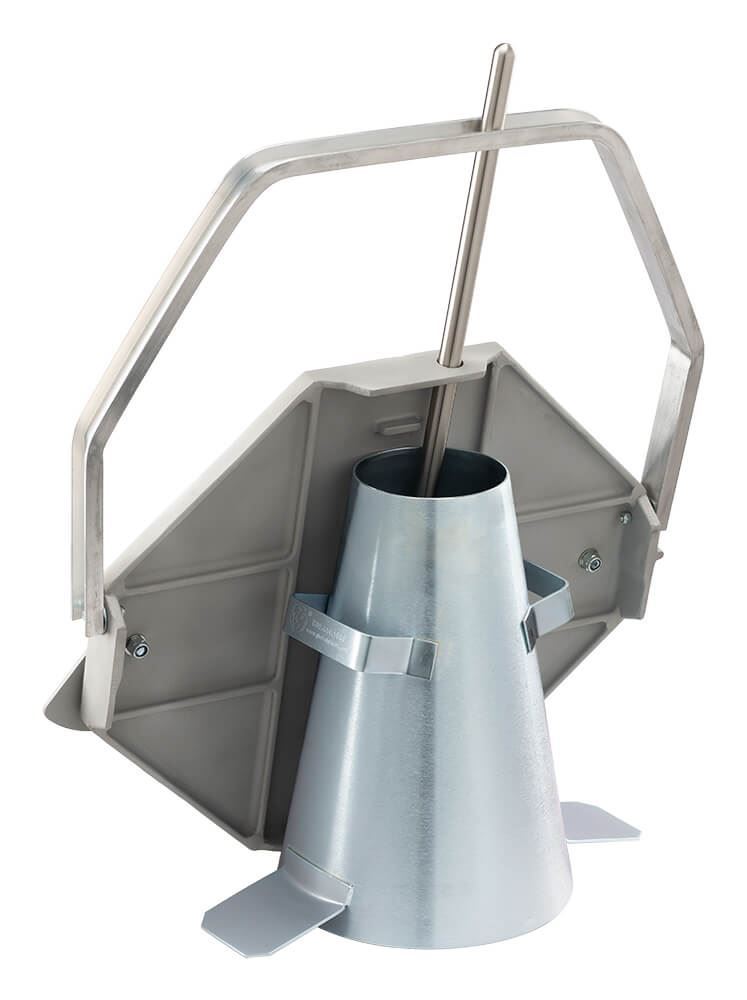

Slump Cone, Base and Rod Set

Model: HM-40
Price: $143.50

The concrete slump test measures workability and reflects the approximate water/cement ratio of fresh concrete. Gilson’s collection of Slump Test Sets bring together the most useful components for performing this basic field test for acceptance and workability while maintaining strict compliance with ASTM C143 and AASHTO T 119.

User places the mold on the cast aluminum Base Plate or a flat, level surface and uses a scoop to fill the mold with even layers of concrete. A tamping rod is used to uniformly consolidate and distribute the specimen and strike off any excess concrete. The cone is raised up in a steady, motion, and the vertical displacement of the concrete is measured.


  • Large tabs on the Base swivel to clamp Slump Cone securely
  • Components assemble compactly for easy transport and storage
  • Carrying handle rotates to correct height for on-the-spot slump measurements

 Included Items:

  • Heavy-gauge spun steel Slump Cone, plated for corrosion-resistance
  • Durable cast aluminum Base Plate
  • 5/8X24in (16X610mm) steel tamping rod with hemispherical ends for consolidation and molding of specimens
Estimated Shipping Weight, lb (kg) 21lb (10kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Estimated Shipping Weight, lb (kg) 21lb (10kg)
Meets Standard(s):
