Loading Weights

60psf Loading Weight, 2.44in Diameter

60psf Loading Weight, 2.44in Diameter

Model: HMA-835D
$112.5000
Price: $112.50
100psf Loading Weight, 2.44in Diameter

100psf Loading Weight, 2.44in Diameter

Model: HMA-835F
$212.5000
Price: $212.50
100psf Loading Weight, 2.5in Diameter

100psf Loading Weight, 2.5in Diameter

Model: HMA-835G
$122.5000
Price: $122.50
60psf Loading Weight, 2.5in Diameter

60psf Loading Weight, 2.5in Diameter

Model: HMA-835E
$41.0000
Price: $41.00

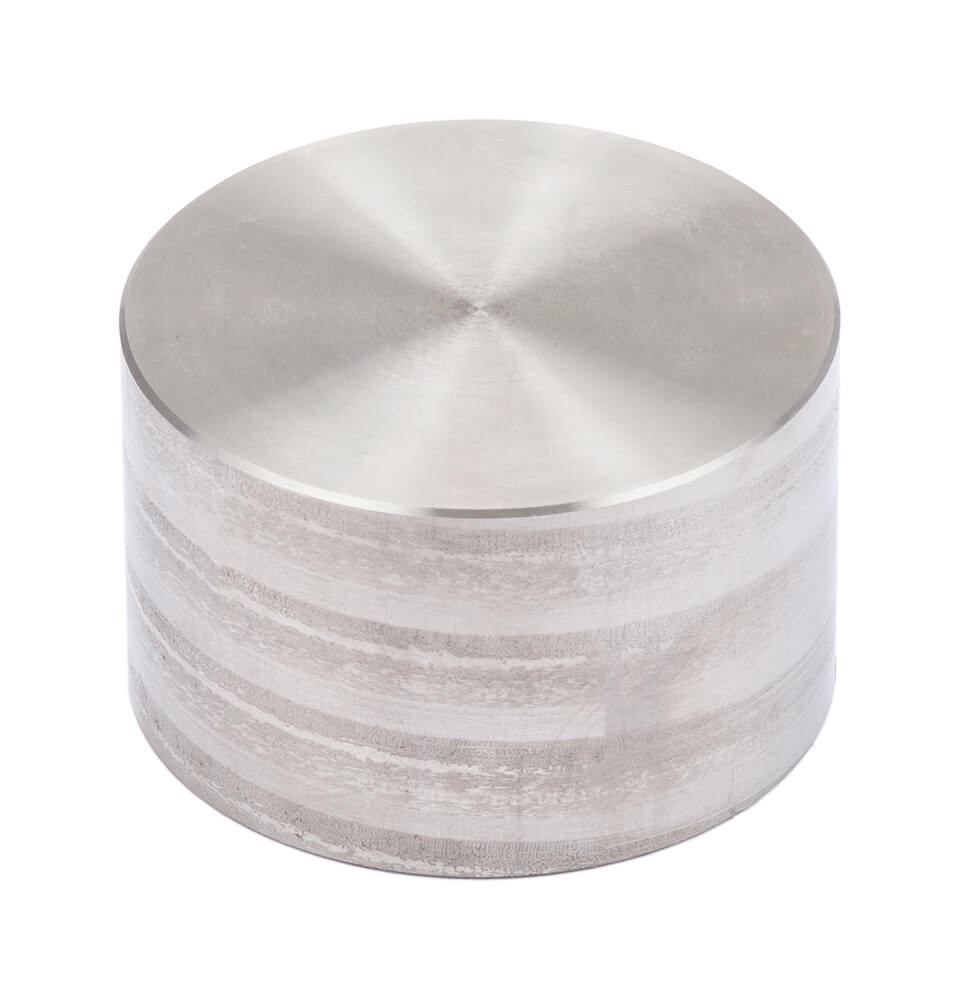

Loading Weight is included with the Basic Swell Consolidometer for loading soil specimens with a total load of 60psf or 100psf (2.87kPa or 4.7kPa). It can also be sold separately as a replacement item.

HMA-835D is used for loading 2.44in (62mm) soil specimens and has 60psf (2.8kPa) load capacity.

HMA-835E is used for loading 2.5in (63.5mm) soil specimens and has 60psf (2.8kPa) load capacity.

HMA-835F is used for loading 2.44in (62mm) soil specimens and has 100psf (4.7kPa) load capacity.

HMA-835G is used for loading 2.5in (63.5mm) soil specimens and has 100psf (4.7kPa) load capacity.

Included Items:

  • Loading Weight
Specimen Size

HMA-835D and HMA-835F: 2.44in (62mm)

HMA-835E and HMA-835G: 2.5in (63.5mm)

Load Capacity

HMA-835D and HMA-835E: 60psf (2.87kPa)

HMA-835F and HMA-835G: 100psf (4.7kPa)

Estimated Shipping Weight 4.0lb (1.81kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Specimen Size

HMA-835D and HMA-835F: 2.44in (62mm)

HMA-835E and HMA-835G: 2.5in (63.5mm)

Load Capacity

HMA-835D and HMA-835E: 60psf (2.87kPa)

HMA-835F and HMA-835G: 100psf (4.7kPa)

Estimated Shipping Weight 4.0lb (1.81kg)
