3" Precision Electroform Sieve, Half Height, 53um

Model: V3EH-053
$324.5000
Price: $324.50

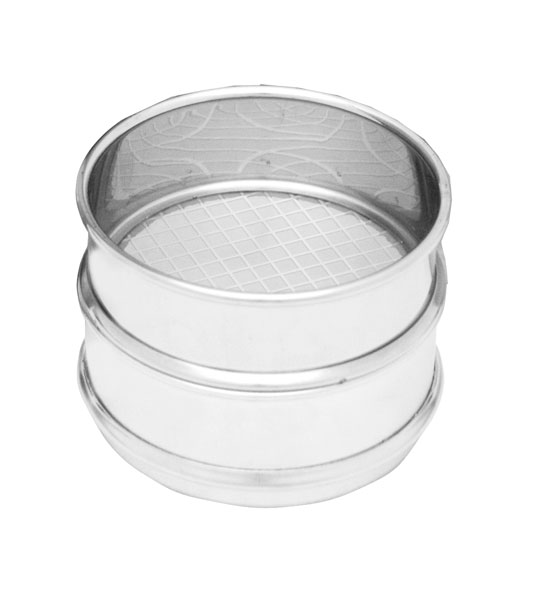

3in (76mm) diameter ASTM precision electroformed test sieve has stainless steel/nickel mesh woven-wire cloth with 53µm opening size and half height stainless steel frame.

Features:

  • Greater accuracy of ±2µm for precision particle sizing operations compared to woven wire sieves
  • Ideal choice for very fine powders when used with vibratory or sonic shakers
  • Reliable reference standard when calibrated with glass beads or other reference materials
Sieve Frame Diameter 3in (76mm)
Frame Height Half Height
Material Stainless Steel/Nickel Mesh
ASTM E 161 Opening Size 53µm
Lines Per Inch (LPI) 250
  • Question: We need the accuracy of +/- 1um for opening size of 5um, 8um. Is it possible?
    • Answer: Yes, we can special order sieves with a more narrow tolerance. Contact us to special order.

  • Question: What is the durability of your precision electroformed sieves, how thick is the mesh material, and will they stand up to aggressive brushing?
    • Answer: Precision electroformed mesh is very fragile and delicate. The mesh is formed using electrodeposition of nickel, a durable material but not sturdy enough to hold up to aggressive brushing. These are precision instruments and should be treated carefully.  We recommend ultrasonic cleaning units such as the UB-15 for the Precision Electroformed Sieves. Use extreme caution until it is known that the system is suitable for each sieve size. Select lower energy output with frequency above 40kHz for 20 seconds or less. Sieves should be positioned vertically, and addition of ethyl or isopropyl alcohol to tank water will decrease erosion risk. Drying temperature should not exceed 100°C.

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Sieve Frame Diameter 3in (76mm)
Frame Height Half Height
Material Stainless Steel/Nickel Mesh
ASTM E 161 Opening Size 53µm
Lines Per Inch (LPI) 250
