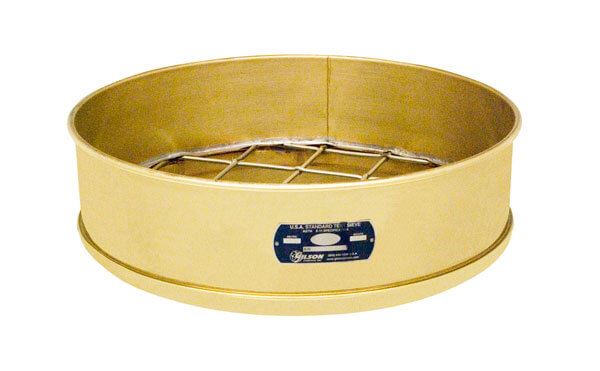

18" Sieve, Brass/Stainless, Full Height, No. 5 Mesh

Model: V18CF #5
More Information
$295.1000
Price: $295.10

18in (457mm) diameter ASTM E11 Test Sieve has stainless steel woven-wire cloth with No.5 (4.0mm) openings and full height brass frame. Each sieve is individually serial numbered. Overall height is 5-1/2in and stacked height is 4-1/4in.

Features:

  • Individually serial numbered
  • Compliant with ASTM E11 requirements for Compliance Sieves

Included Items:

  • 18” Sieve, Brass/Stainless, Full Height, No. 5 Mesh
  • Certificate of Conformance to ASTM E11 requirements

Optional Accessories:

  • Sieve Pans nest underneath sieves to collect fines
  • Sieve Covers prevent sample loss during agitation
  • Verification Services provide NIST traceable documentation of opening sizes
Sieve Frame Diameter 18in (457mm)
Frame Height Full Height
Stacked Frame Height 4-1/4in
Overall Frame Height 5-1/2in
Material Brass Frame / Stainless Steel Mesh
ASTM E11 Opening Size No.5 (4.0mm)
Backing Cloth Included No
Estimated Shipping Weight, lb (kg) 8.0lbs / 3.63kg
