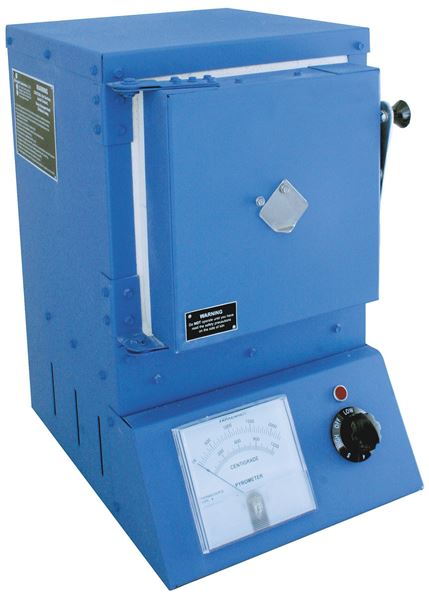

242in³ Muffle Furnace w/ Analog Controller

Product is unavailable.

This item has been discontinued. Please see Muffle Furnaces for other available models.

The MF-2 242in3 (3.68L) Muffle Furnace w/Analog Controller has a maximum temperature of 2,350°F (1,287°C) and a manually operated temperature controller. The indicating pyrometer with chromelalumel thermocouple has both Centigrade and Fahrenheit graduations and is accurate to ±2% of reading. The analog percent input knob must be adjusted manually at 4 to 5-minute intervals during operation to control temperature. This model is ideal for single-point operation for ashing, ignition tests, gravimetric analyses and volatile matter determinations of soils, aggregates and cement samples. For precise automated control of temperature without manual adjustments, the MF-2A model offers microprocessor control with segmented programs. MF-2A model features a painted heavy-gauge steel case with a side-opening door. Chamber dimensions are 6x6x6.3in (152x152x159mm) WxDxH. The chamber is fitted with 2.5in (64mm) refractory firebrick and heating elements are recessed into the firebrick for easy maintenance. Rugged construction helps ensure long service life. The unit operates on 115V/60Hz/12Amps and is supplied with a power cord and plug.

MF-2F 242in3 Muffle Furnace is identical but operates at 230V/50Hz/6Amps.

Features:

  • Chamber interior constructed of 2.5in (64mm) refractory firebrick
  • Case is heavy gauge painted steel
  • Analog controller and indicating pyrometer for manual temperature control

Included Items:

  • 242in³ Muffle Furnace w/Analog Controller (115V/60Hz/12Amps or 230V/50Hz/6Amps)
  • Analog Controller
  • Power Cord and Plug
Maximum Temperature 2,350°F (1,287°C)
Chamber Volume 242in³ (3.96L)
Electrical

MF-2: 115V / 12Amps / 1,440Watts

MF-2F: 230V / 6 Amps / 1,440 Watts

Chamber Dimensions 6 x 6 x 6.3in (152 x 152 x 159mm), WxDxH
Product Dimensions 11 x 15 x 18in (279 x 381 x 457mm), WxDxH
Estimated Shipping Weight 44.0lbs (19.96kg)
