Superpave™ Gyratory Compactor

Superpave™ Gyratory Compactor (115V/60Hz)
Superpave™ Gyratory Compactor (115V/60Hz)
Model: HM-685
$32500.0000
Price: $32,500.00
Superpave™ Gyratory Compactor (230V/50-60Hz)
Superpave™ Gyratory Compactor (230V/50-60Hz)
Model: HM-685F
$32500.0000
Price: $32,500.00
Superpave™ Gyratory Compactor w/ Shear Measurement (115V/60Hz)
Superpave™ Gyratory Compactor w/ Shear Measurement (115V/60Hz)
Model: HM-685S
$37800.0000
Price: $37,800.00
Superpave™ Gyratory Compactor w/ Shear Measurement (230V/50-60Hz)
Superpave™ Gyratory Compactor w/ Shear Measurement (230V/50-60Hz)
Model: HM-685SF
$37800.0000
Price: $37,800.00

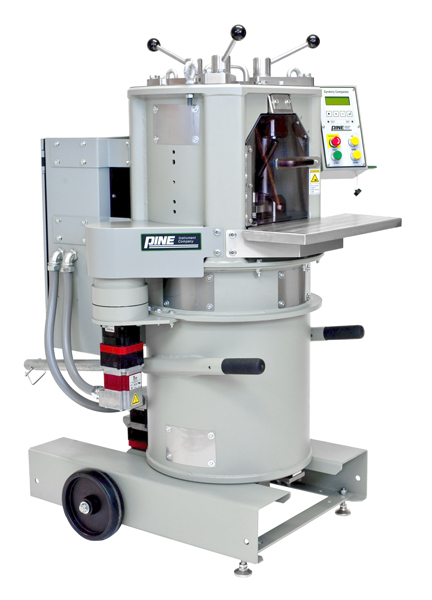

The SuperpaveTM Gyratory Compactor by Pine Instruments prepares hot-mix asphalt specimens for SuperpaveTM mix design operations. A mold with asphalt specimen is gyrated on its longitudinal axis at a fixed angle while the end platens are held parallel. The HM-685 Gyratory Compactor is made in the USA and also tests a wide range of materials including soils, emulsion-based mixes, and roller compacted concrete.

Variable user settings regulate compaction pressure, angle adjustment, gyrations, and adaptability for different size molds, enabling versatility in a variety of applications. An integrated computer with two USB ports and an Ethernet jack manages settings through a simple menu interface, and a four-button control panel simplifies machine operation. The computer also sets the angle of gyration and allows the user to switch between internal and external angle settings with little effort. The control system is network compatible for complete data management. Number and angle of gyrations, specimen height, and consolidation pressure can be sent through an Ethernet cable to a network or to a standalone PC, stored on a flash drive, or printed directly with the optional HMA-626 PCL Laser Printer.

Operation modes can be set to a specified number of gyrations, specified sample height, or a locking point, all at a selected internal or external angle. Total gyrations can be selected from 0 to 999 at 30 ±0.5 gyrations per minute and 0° to 1.50° internal or external angle, with compaction pressure selectable from 200 to 999kPa. Final specimen height is user-controlled from 0 to 210mm. A built-in specimen extruder and a completely enclosed compacting chamber are convenience and safety features, minimizing lifting of hot, heavy molds, and shielding moving parts. Molds are available for 150mm, 100mm, or 4.0in diameter specimens.

The HM-685S is an identical model, factory-equipped to measure and graph gyratory shear, the force required to gyrate the specimen. The data can be depicted as gyratory shear force vs. gyrations or as shear force vs. percent air-voids. This information provides insight into the workability and compactability of a mix.

Power requirements are 115V/50-60Hz, or 230V/50-60Hz for the HM-685F. Inquire for other electrical configurations.

Features:

  • Designed and built for compaction of hot mix asphalt for Superpave™ mix designs
  • Meets or exceeds requirements for ASTM D6925 and AASHTO T 312
  • Efficient and adaptable for compacting hot-mix asphalt and other materials
  • Complete user-control of compaction pressure, angle adjustments and gyration
  • Straightforward four-button control panel simplifies machine operation
  • Final specimen height is user-controlled from 0 to 210mm

Included Items:

  • Superpave GyratoryTM Compactor

Optional Accessories:

Gyration Rate 30 ±0.5 gyrations per minute
Angle of Gyration 0.00° to 1.50° , Selectable to Internal or External Angle
Compaction Force 200 to 999kPa
Specimen Size 0 to 8.3in (0 to 210mm)
Power Requirements 115V/50-60Hz or 230V/50-60Hz
Unit Weight 880lb (400kg)
Dimensions 34.5 x 35.5 x 54in (875 x 900 x 1,375mm), W x D x H

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Gyration Rate 30 ±0.5 gyrations per minute
Angle of Gyration 0.00° to 1.50° , Selectable to Internal or External Angle
Compaction Force 200 to 999kPa
Specimen Size 0 to 8.3in (0 to 210mm)
Power Requirements 115V/50-60Hz or 230V/50-60Hz
Unit Weight 880lb (400kg)
Dimensions 34.5 x 35.5 x 54in (875 x 900 x 1,375mm), W x D x H
Meets Standard(s):
