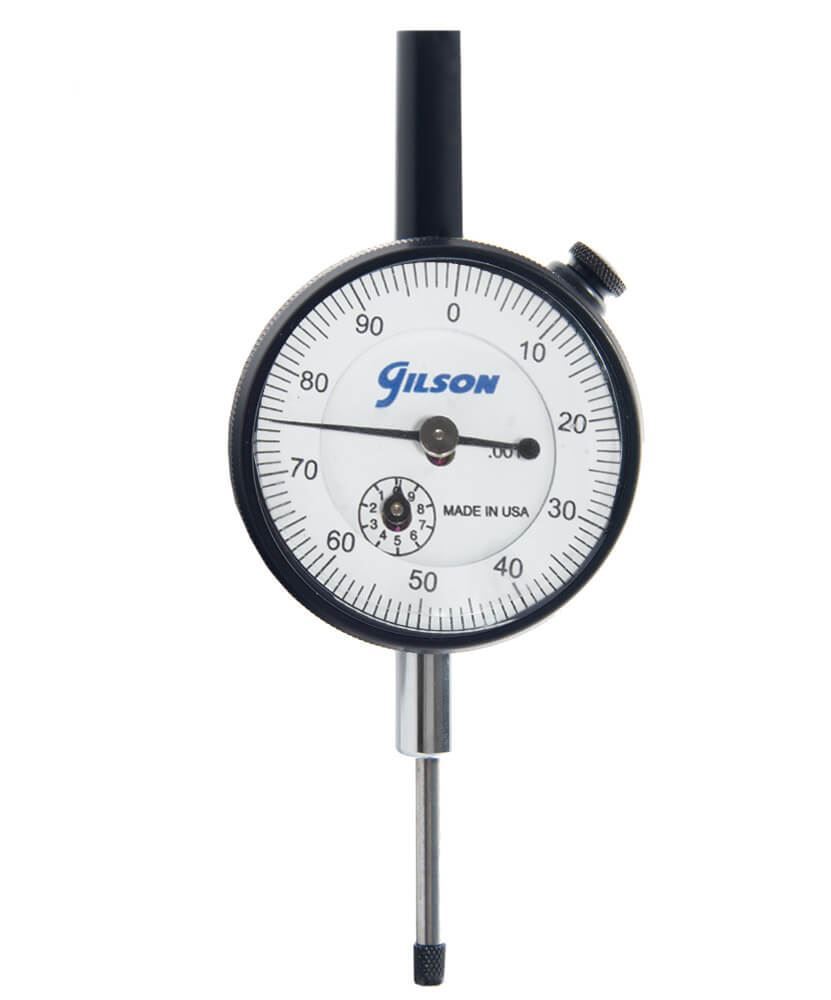

Mechanical Dial Indicators

Mechanical Dial Indicator, 0.2 x 0.0001in (Range x Division)

Model: MA-330

$190.0000

Price: $190.00

Qty:

Mechanical Dial Indicator with Brake, 0.2 x 0.0001in (Range x Division)

Model: MA-330B

$220.0000

Price: $220.00

Qty:

Mechanical Dial Indicator, 1 x 0.001in (Range x Division)

Model: MA-334

$107.0000

Price: $107.00

Qty:

Mechanical Dial Indicator NIST Certified, 1 x 0.001in (Range x Division)

Model: MA-334C

$127.0000

Price: $127.00

Qty:

Mechanical Dial Indicator with Brake, 1 x 0.001in (Range x Division)

Model: MA-334B

$147.0000

Price: $147.00

Qty:

Mechanical Dial Indicator, 25 x 0.01mm (Range x Division)

Model: MA-346

$131.0000

Price: $131.00

Qty:

Mechanical Dial Indicator with Brake, 25 x 0.01mm (Range x Division)

Model: MA-346B

$178.0000

Price: $178.00

Qty:

Description
Specifications
Questions?

Mechanical Dial Indicators feature low friction mechanisms that react instantly to contact pressure for accurate displacement readings. Indicators have 2.25in (57mm) diameter dial faces, continuous clockwise dials with one hundred divisions per revolution, and a revolution counter. Backs rotate 90° to adapt to horizontal or vertical mounting positions.

Models with “B” suffix have brakes to hold maximum indicator needle positions.

Models with “C” suffix include a certificate of calibration.

Features:

Optimal for delivering fast, accurate displacement readings
Adaptable, 90° back adjusts to fit vertical and horizontal mounting positions

Included Items:

Mechanical Dial Indicator

Accessories:

Extended Contact Points in sizes from 0.5–2in adapt the unit to different configurations
HMA-338 Magnetic Gauge Holder secures indicator unit to surfaces

Related blogs:

California Bearing Ratio Test: CBR Values & Why They Matter

Range x Division	MA-330: 0.2 x 0.0001in MA-330B: 0.2 x 0.0001in MA-334: 1 x 0.001in MA-334C: 1 x 0.001in MA-334B: 1 x 0.001in MA-346: 25 x 0.01mm MA-346B: 25 x 0.01mm
Product Dimensions	2.25 x 2 x 5.5in (57 x 51 x 140mm) Dia.xDxH
Estimated Shipping Weight	2.0lb (0.91kg)
