Manual Sand Equivalent Shaker

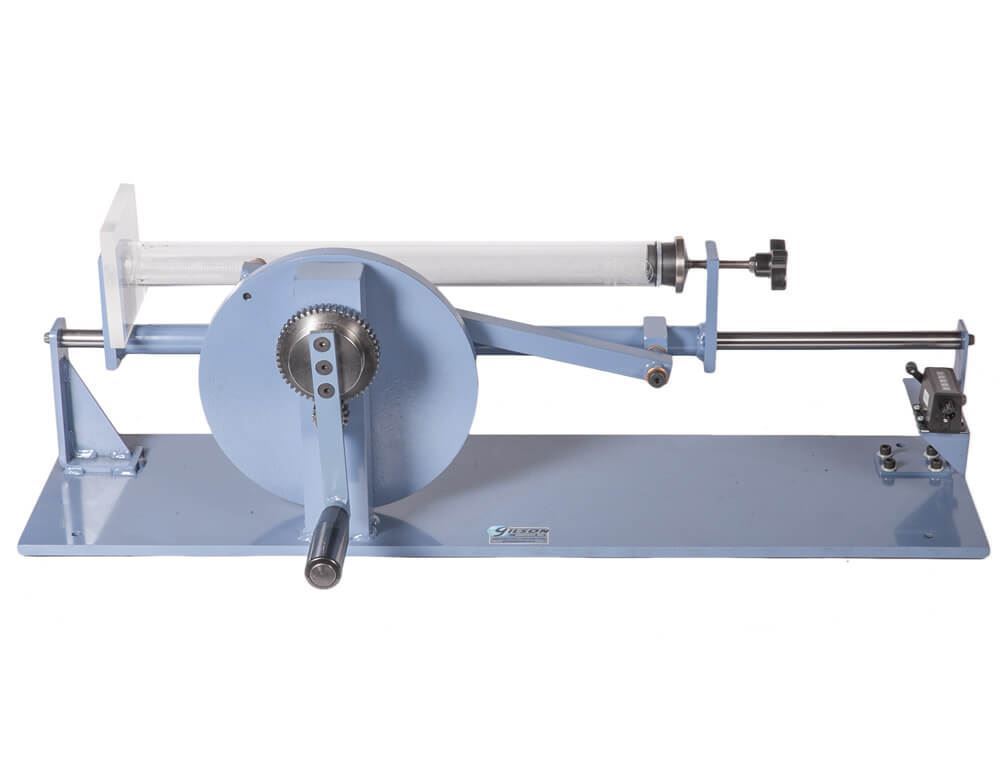

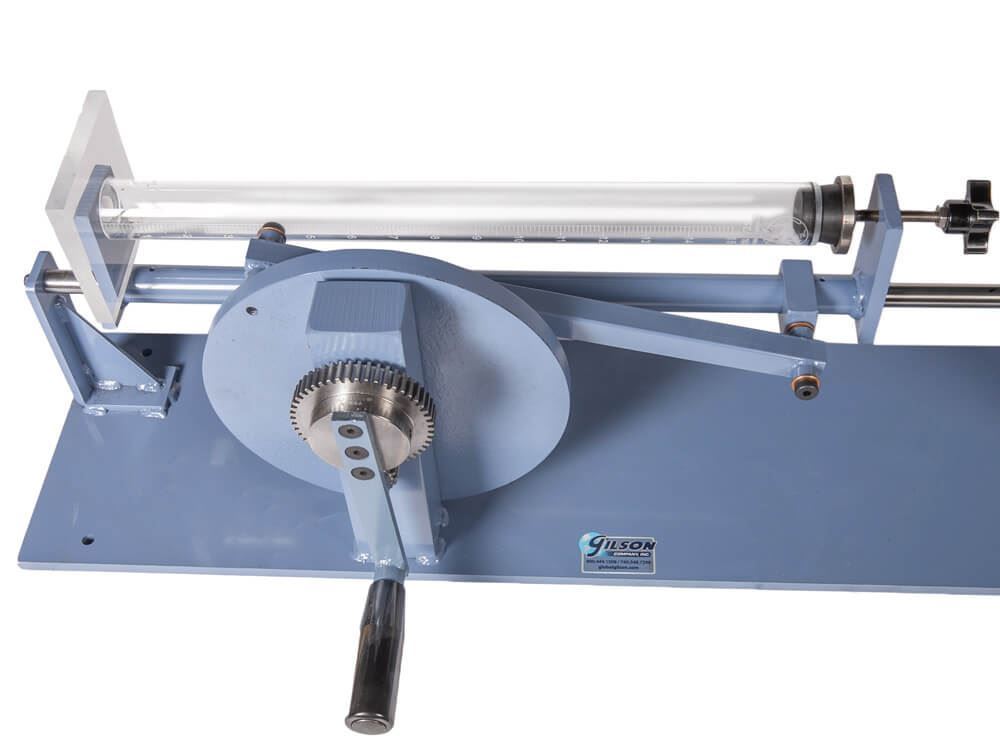

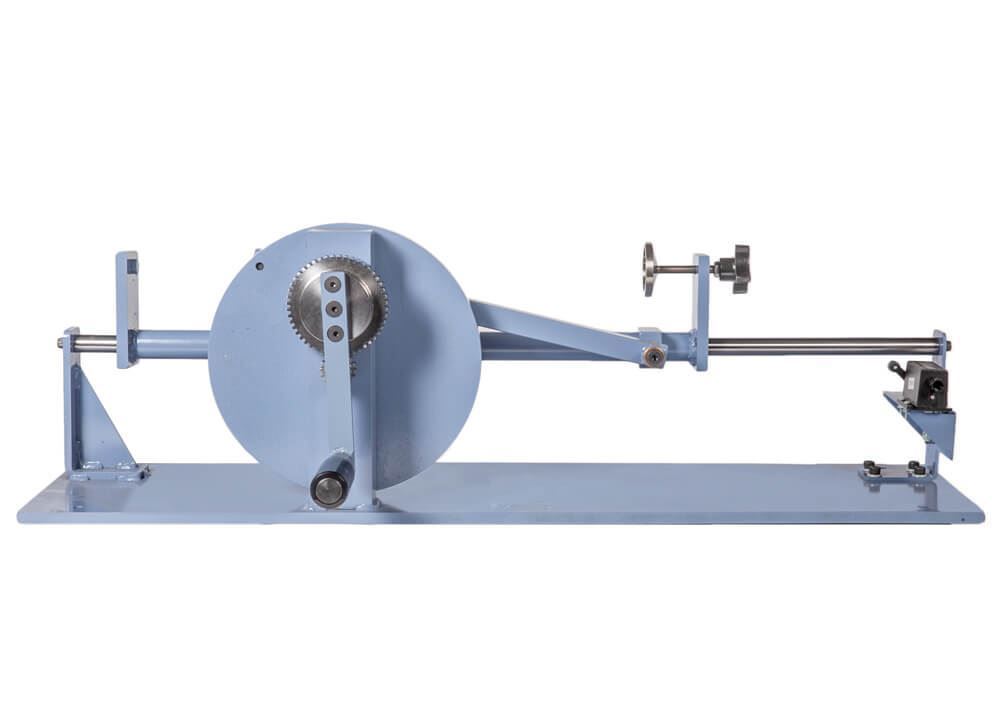

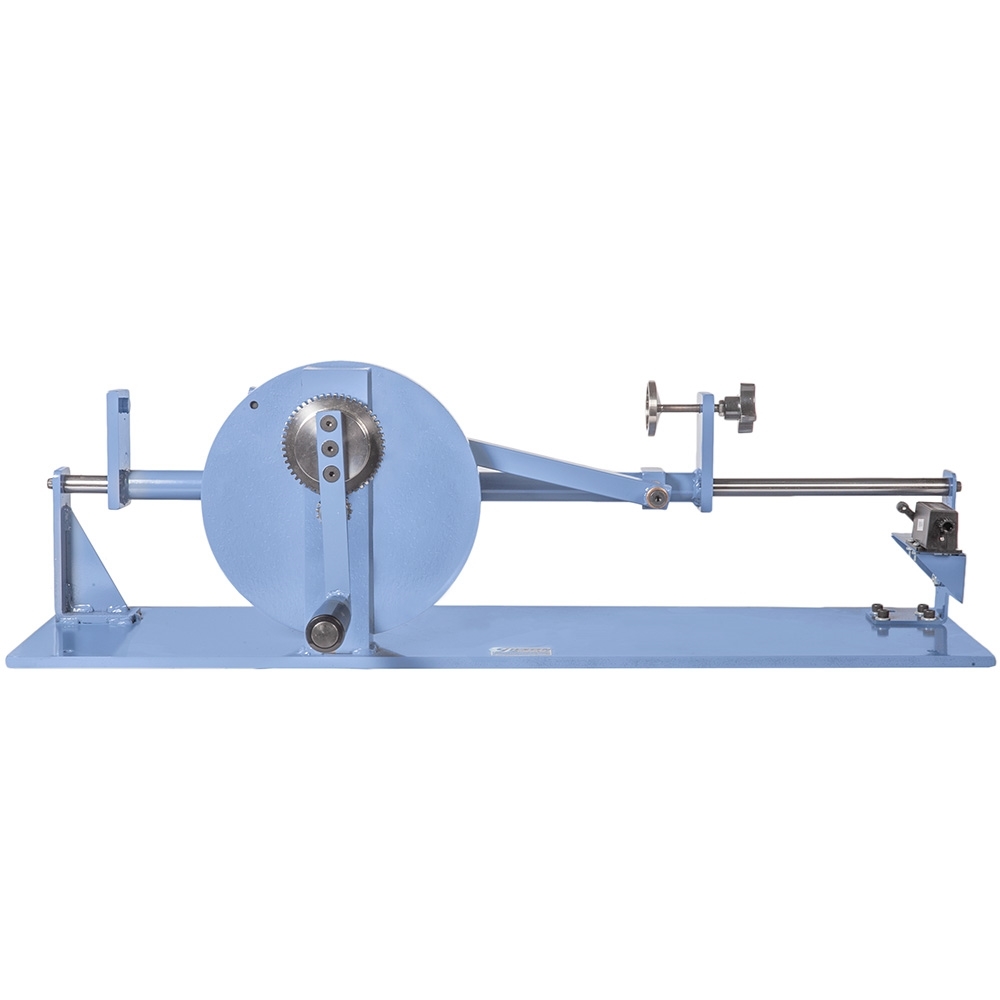

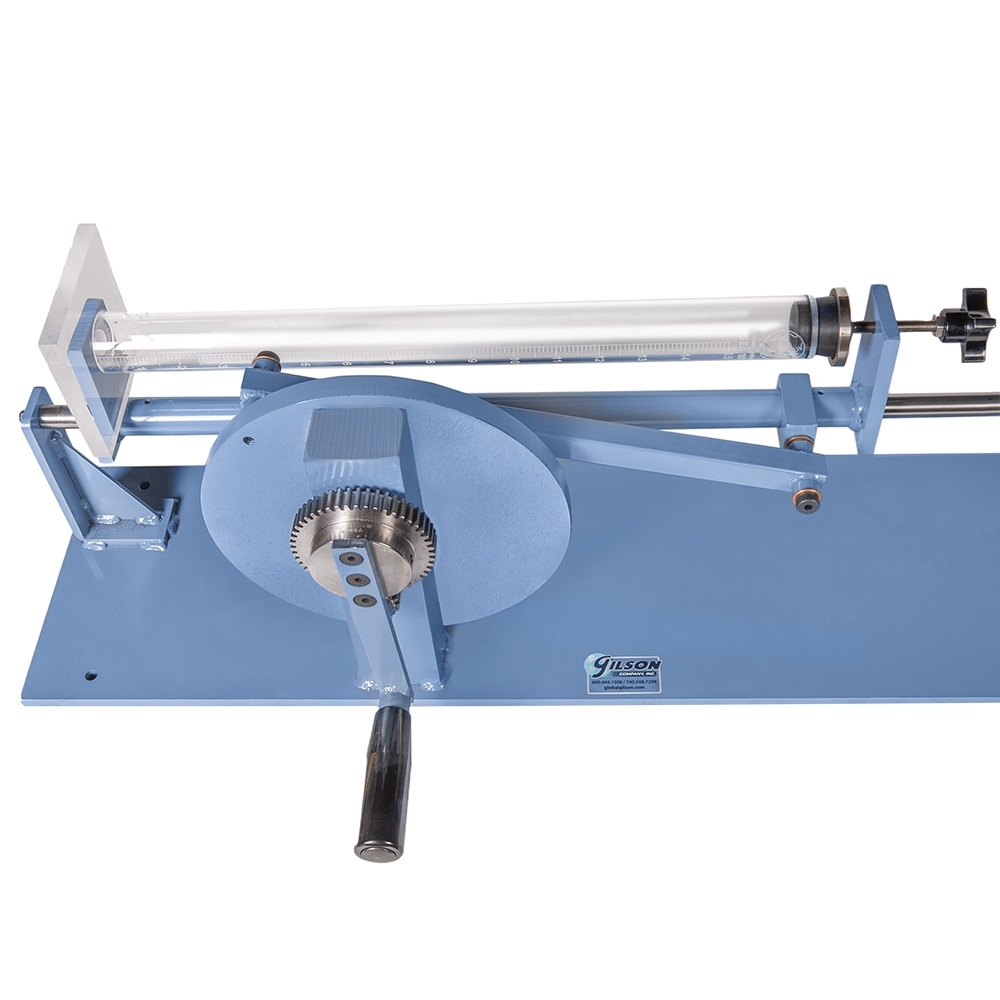

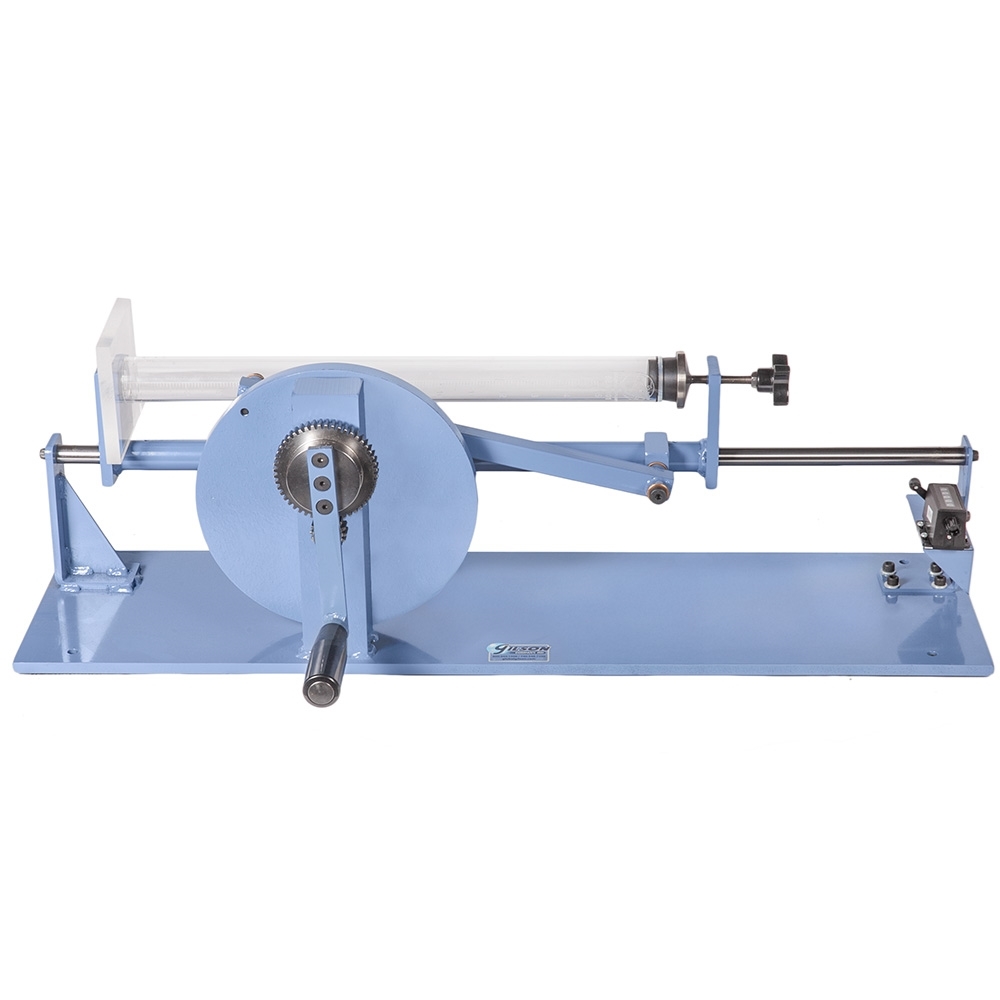

Manual Sand Equivalent Shaker used in Sand Equivalent Test to determine undesirable clay-like fines in granular soils and fine aggregates. The 30x14x10in (762x356x254mm) WxDxH painted steel device mounts the SEA-101 Clear Plastic Cylinder to the shaker’s fixed-travel guide rod base with a pin and threaded clamp holder on the stoppered end. The unit performs three cycles per manual revolution of the crank mechanism, and the operator cranks at one turn per second until the 5-digit tally counter reaches 131 cycles. The base is equipped with four mounting holes.

Features:

• Ensures accuracy and efficiency in Sand Equivalent testing
• Mounting capability for extra stability

Included Items:

• Manual Sand Equivalent Shaker

Accessories:

• SEA-101 Clear Plastic Cylinder holds samples for sand equivalent testing
• SEA-102 Stock Solution for Sand Equivalent Test dilutes with water to make a solution for Sand
