Gas Pressure Moisture Testers: 4 Things you Need to Know

Reliable moisture information is essential for testing soils, sand, aggregates, ores and other materials. For testing done in field conditions, devices must often be limited to equipment that is portable and does not require external power to operate. Gas Pressure Moisture Testers meet all these needs perfectly. The test can be conducted in just a few minutes at any location, no power source is required, the results are accurate and widely accepted, and the entire kit packs into a compact, sturdy carrying case.

What is the Purpose of a Gas Pressure Moisture Tester?

For decades, the gas-pressure method for moisture determination has been a proven method to accurately and quickly to determine the moisture content of nonreactive materials with a particle size of up to 20mm, in locations where it’s not always practical to install an oven or transport samples. This method meets ASTM D4944 specifications and is easily and directly correlated to oven-dry moistures.

How Does it Work?

These devices work as pressure vessels to contain and measure the chemical reaction resulting from combining the moist sample with pulverized calcium carbonate. The reagent reacts with available water in the sample, and the sensitive gauge measures gas pressure in the sealed chamber.

  1. A pre-weighed, moist 20g sample is placed in the test chamber with a measured quantity of calcium carbide reagent

    Pre-weighed, Moist 20g Sample
  2. The cap is secured on the chamber and the sample is agitated along with two steel pulverizing balls for one to three minutes, freeing moisture from the sample to react with the reagent, producing acetylene gas

    20g Sample Producing Acetylene Gas
  3. Gas generated by the reaction pressurizes the integral dial gauge for a direct pressure measurement. The gauge registers 0-20% moisture by weight in 0.2% gradations

    Gas Pressure Measurement
  4. Calibration curve is established for each instrument using the general soil types to be tested.

    Calibration Curve
    • A range of soil samples of differing material types and moisture content are selected and then carefully divided into two representative specimens
    • One specimen is tested with the gas pressure moisture tester and the other is dried in a laboratory oven at 110° ±5°C to a constant dry mass
    • Results of the two tests are plotted on an X-Y graph and a best-fit curve is plotted through the points

*This procedure is outlined in detail in the ASTM/AASHTO test methods.


What Are the Benefits?

  • Accurate
  • Rapid and dependable
  • Portable for use in the field
  • Durable, die-cast aluminum body
  • User-friendly
  • Integral dial
  • No power supply required
  • Compliant
    • Aligned to meet current ASTM D4944 requirements
    • Compliant with AASHTO T217 specifications
    • Meet Florida FM 5-507 methods


  • What Do We Recommend?
    The Gilson Aqua-Check Moisture Tester or the Speedy Moisture Tester are both acceptable for moisture determinations. The U.S.A. manufactured Aqua-Check and the imported Speedy Moisture Tester meet the requirements of standardized test methods. Gas Pressure Moisture Testers make moisture determinations fast, accurate and simple.

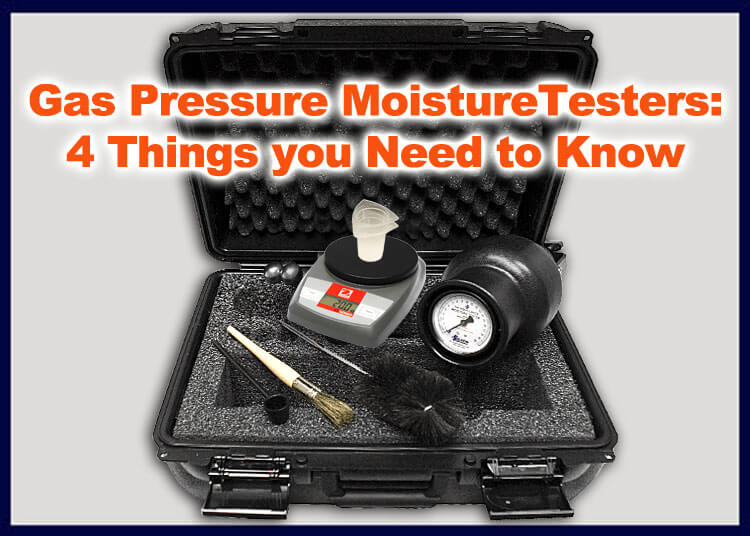

    The kits include:
    • Rugged, cast aluminum pressure vessel
    • Integral pressure gauge with certificate of calibration
    • Electronic digital balance
    • Reagent measuring scoop
    • Brush
    • Cleaning cloth
    • Instructions in waterproof case

    *Calcium Carbide Reagent is available separately as MAA-44

For more information on Moisture Testers call us at 800.444.1508 to speak with an expert!
