Dynamic Shear Rheometer

Dynamic Shear Rheometer (115V / 60Hz)
Dynamic Shear Rheometer (115V / 60Hz)
Model: HM-86
Call for pricing
Dynamic Shear Rheometer (220V / 50Hz)
Dynamic Shear Rheometer (220V / 50Hz)
Model: HM-86F
Call for pricing

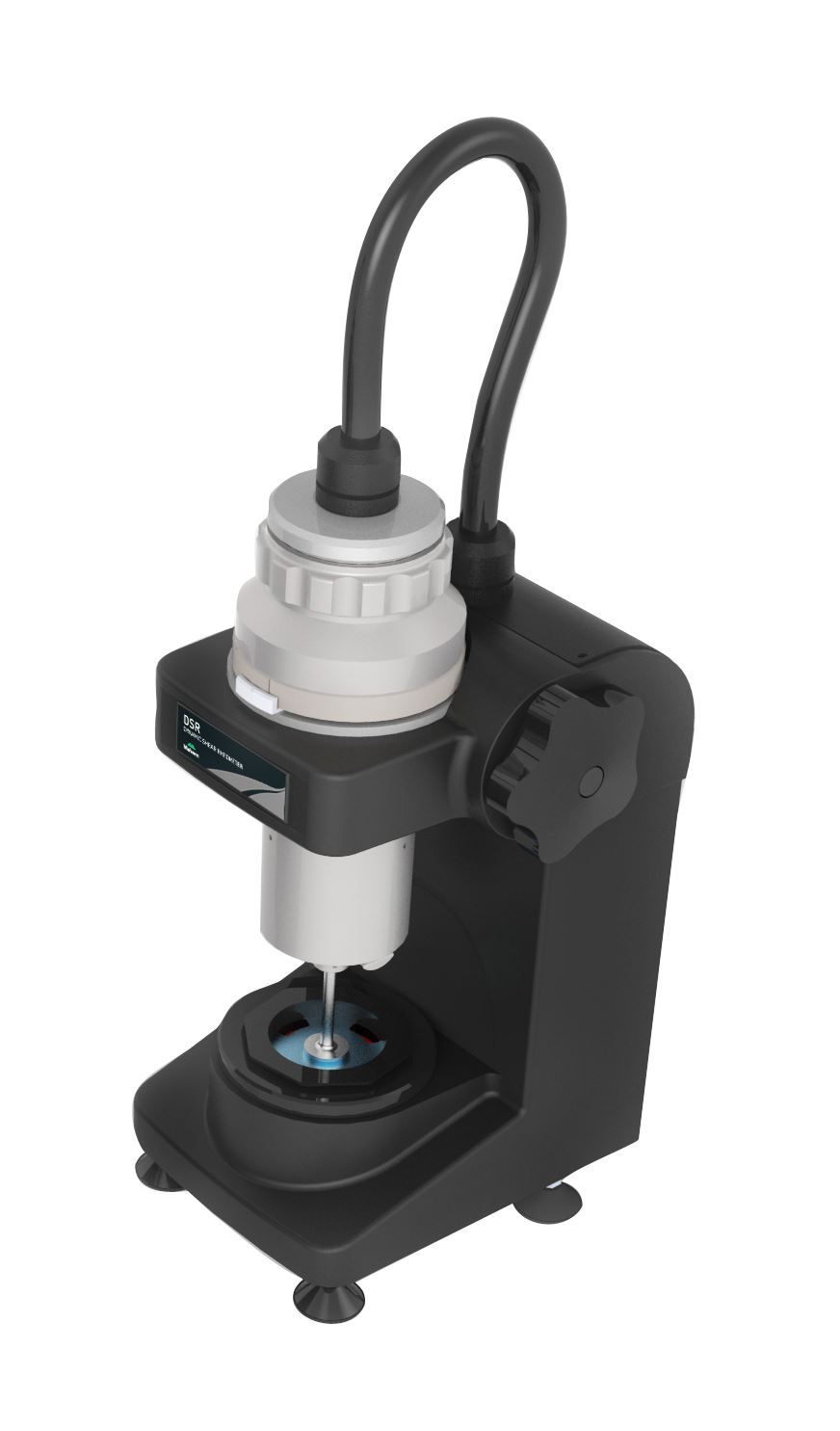

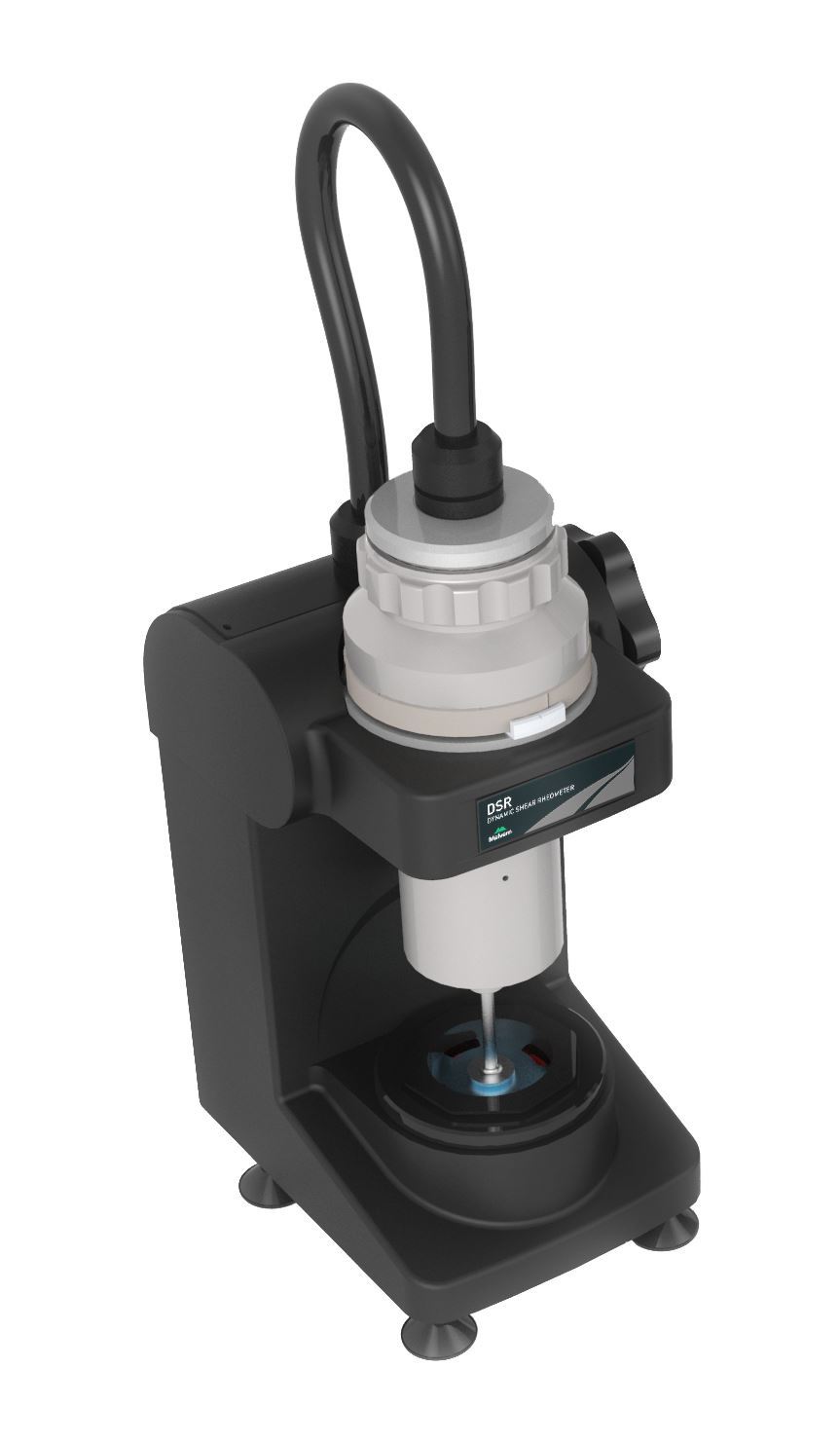

The HM-86 Dynamic Shear Rheometer (DSR) determines linear viscoelastic properties of performance-graded asphalt binders at temperatures from 5°—85°C (41°—185°F). It’s also used in QC/QA testing and some research applications.  The lower specimen plates hold a disc of asphalt in place, while the upper measurement plates oscillate to produce strain. Dynamic shear modulus and phase angle properties are measured.

Dual operation in strain or stress control mode makes this instrument adaptable to many applications. The system has a torque-measuring drive for determining strain and a circulator system to immerse the sample in fluid at a constant temperature. 8mm and 25mm upper and lower stainless steel specimen plates are provided, as well as a built-in Resistance Temperature Detector (RTD). A special “NO GAP" feature eliminates the need for the operator to re-zero the instrument gap when changes occur. The two marked SHRP testing positions are easily selected and locked for a smooth, secure test procedure. The latest ASTM and AASHTO protocols are built into the included software and PG Grading determinations are automatic. The HM-86 DSR requires an air supply of 1 SCFM at 60psi.

HMA-356 Silicone Rubber Mold Set is required, but purchased separately. A Windows® compatible PC such as Gilson’s HM-354 system is also required, along with a printer.  System price includes one-year warranty, installation and training in continental U.S.A., one year of software updates, and a technical support hotline.

Features:

  • Determines linear viscoelastic properties of asphalt binders from 5°—85°C (41°—185°F)
  • Features dual strain and stress control mode for ultimate proficiency and adaptability
  • Eliminates the need for re-zeroing with the convenient “NO GAP” feature
  • Includes automatic PG Grading determinations for selecting appropriate binder

Included Items:

  • HM-86 Dynamic Shear Rheometer
  • 8mm and 25mm upper and lower stainless steel specimen plates
  • One-year warranty
  • Installation and Training in continental U.S.A.
  • One year of software updates
  • Access to technical support hotline

Required Items:

Optional Accessories:

Estimated Shipping Weight, lb (kg) 240lb (109kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Estimated Shipping Weight, lb (kg) 240lb (109kg)
Meets Standard(s):
