Compaction Permeameters

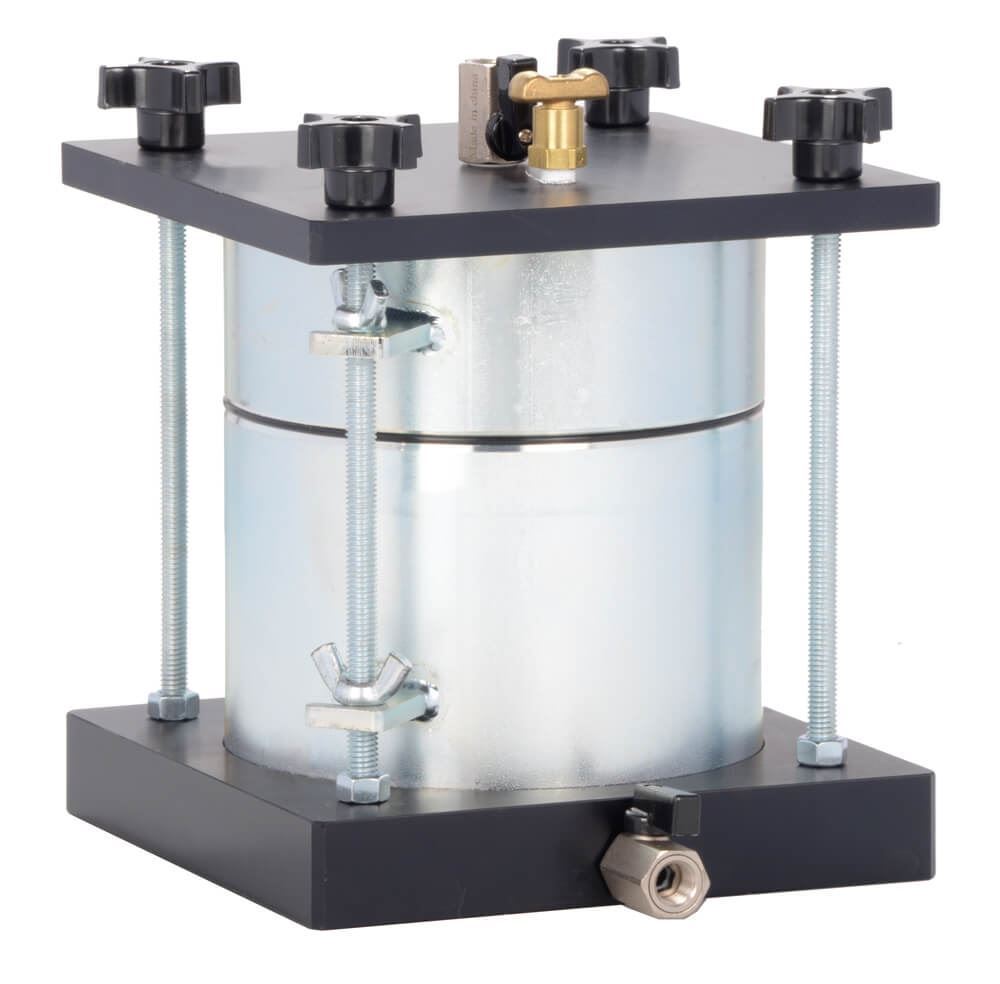

4 and 6in Compaction Permeameters measure constant or falling-head properties of compacted or remolded soils and are designed for use with 4in (102mm) or 6in (152mm) Soil Compaction (Proctor) Mold Sets or Components. The permeameters offer rugged construction, wear resistance, and long life. Upper and lower plates made of anodized aluminum are equipped with inlet/outlet connectors and valves to control the flow of water through the compacted sample. The upper plate has an overflow valve for the bleeding of air during testing. Two Porous stones, tubing, and an O-Ring are included with each model. HMA-840 Single-Tube Manometer is required for use with Compaction Permeameters for soil permeability testing and is purchased separately.

Features:

• Solid construction offers long life
• Overflow valve enables removal of air

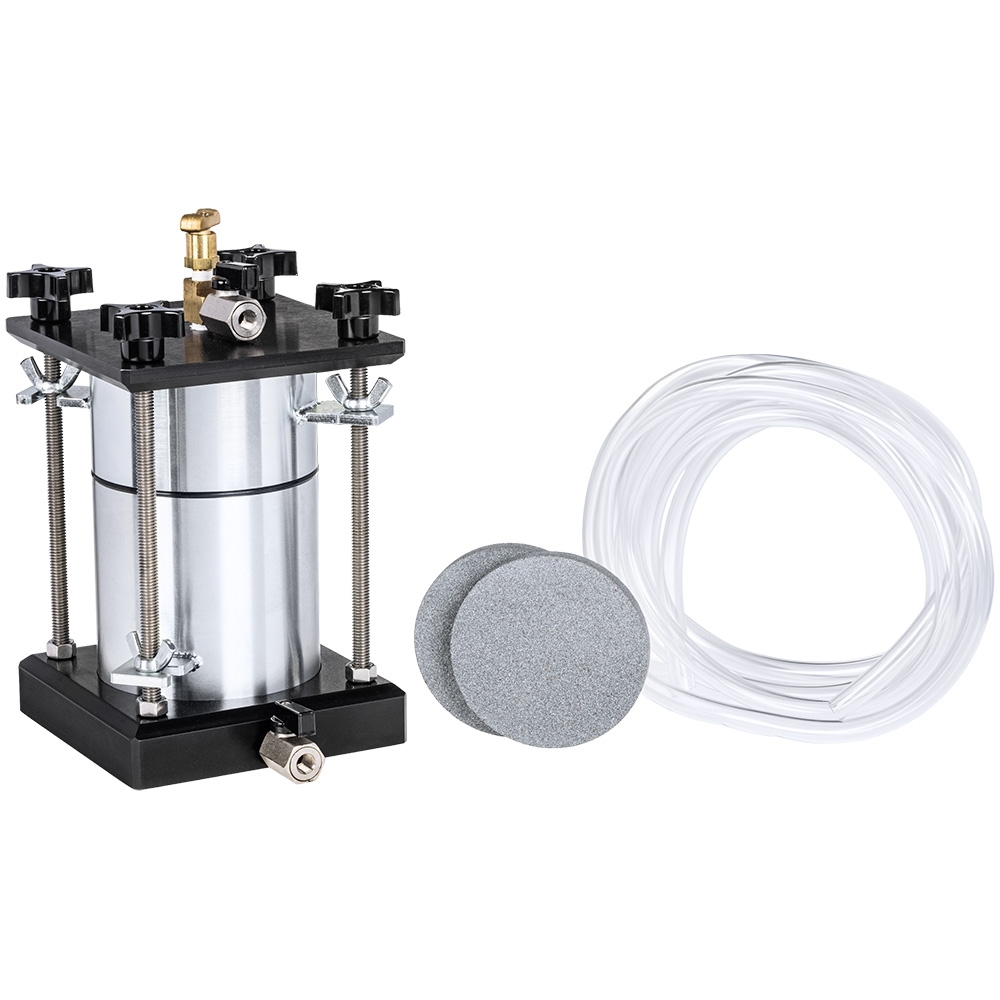

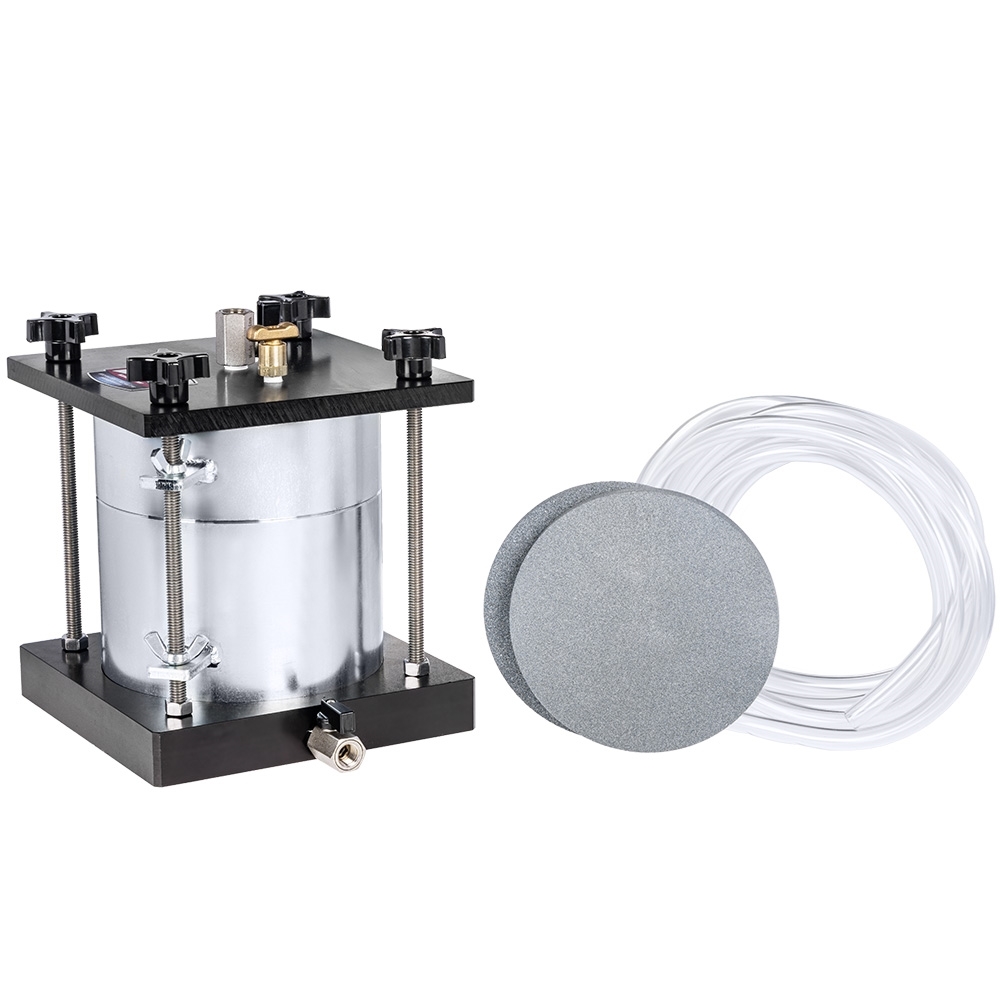

Included Items:

• Compaction Permeameter (4in or 6in)
• (2) Porous stones
• Tubing
• O-Ring

Accessories:

• HMA-840 Single-Tube Manometer with Constant-Head Reservoir for measuring head pressures during permeability testing.
• HMA-110M 4in Soil Density Mold Only for preparing a specimen for testing with 4in compaction permeameter.
• HMA-110C 4in Soil Density Collar Only used with the 4in proctor mold to extend mold height for the specimen.
• HMA-116M 6in Soil Density Mold Only prepares specimen for testing with a 6in compaction permeameter.
• HMA-116C 6in Soil Density Collar Only expands the height of 6in mold.
• HMA-837 Constant Head Reservoir for Granular Soil Permeability has a 1,000cc capacity for controlling the flow of water in testing.
• HMA-775 4in Filter Paper Grade 55 for use with HM-36 4in Compaction Permeameter to prevent blockage of pores.
• HMA-776 6in Filter Paper Grade 55 is used with HM-37 6in Compaction Permeameter to prevent blockage of pores.
