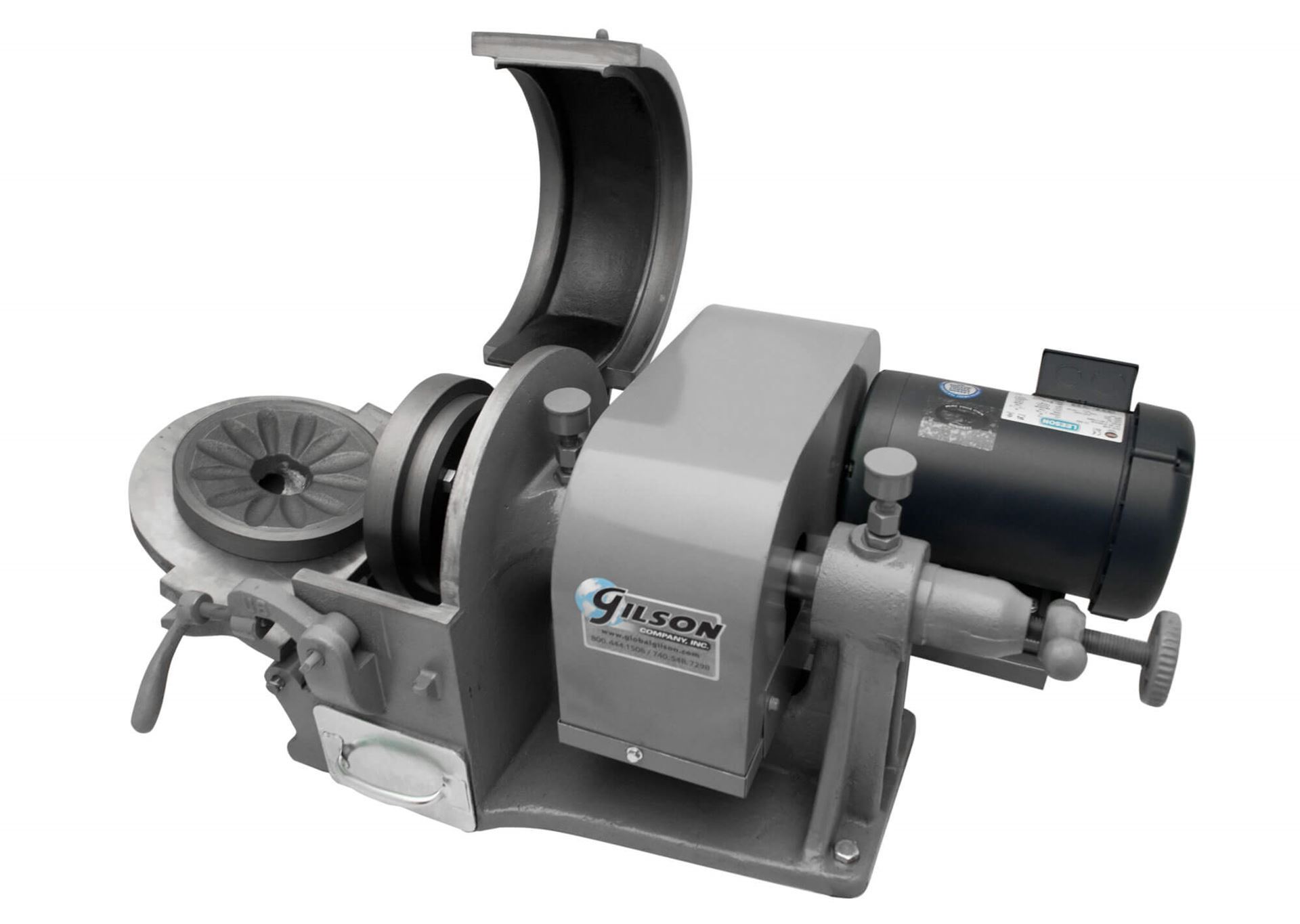

Bico Pulverizer

Bico Pulverizer features efficient operation, minimal power consumption, and long service life. It has a compact design and is effective for pulverizing hard rock, ores, and minerals. The grinding chamber is easily accessible for cleaning, maintenance, and complete sample recovery.

The pulverizer grinds 1/4in (6.4mm) feed material to approximately 75µm (No. 200 sieve size) in a single pass, depending on the material. Throughput is approximately 60lb (27kg) per hour. A threaded knob with a locking lever adjusts the gap between the 8in (203mm) diameter grinding plates to control particle size output. Stationary and revolving grinding plates are easily replaced.

Power from the 2hp motor rotates the shaft at 900–1,000rpm through a double V-belt drive. The motor is totally enclosed and has thermal overload protection. Lubrication to shaft bearings is supplied by manually adjusted grease cups. Operates on 220V, 50/60Hz, 8 amps, 3-phase. Inquire for additional voltages. A motor starting switch is included and must be installed separately on-site.

Safety guards, a catch pan, and an LCA-6 Standard Iron Alloy Grinding Plate Set are also included. Additional grinding plate sets are available as accessories in a variety of materials and varying levels of hardness to meet individual applications.

Features:

• Efficient operation
• Long service life
• The strong performance with hard rock, ores, and minerals
• Thermal overload protection

Included Items:

• Bico Pulverizer
• Standard Iron Alloy Plate Set
• Safety Guards
• Catch Pan
• Motor Starting Switch – must be separately installed

Accessories:

• LCA-6 Standard Iron Alloy Plate Set included with the LC-53, made of the softest material of all grinding plate sets
• LCA-11 Alumina Ceramic Grinding Plates are an exceptionally hard material and offer a high level of contamination control
• LCA-5 Semi-Steel Plate Set used for most applications and has three times the wear resistance of standard iron
• LCA-9 Hardened Alloy Steel Grinding Plate Set is harder than carbon steel and suited for use with harder materials
• LCA-10 Chrome Alloy Steel Grinding Plate Set is harder than hardened alloy and suited for use with hard sample material
• LCA-91 Bico Dust Enclosure Bench for Pulverizers & Crushers redirects nuisance dust to a collector drawer and reduces noise levels
• LCA-92 Replacement Filter for Dust Enclosure Bench easily replaces the worn and dirty filter
