Atomizing Spray Head

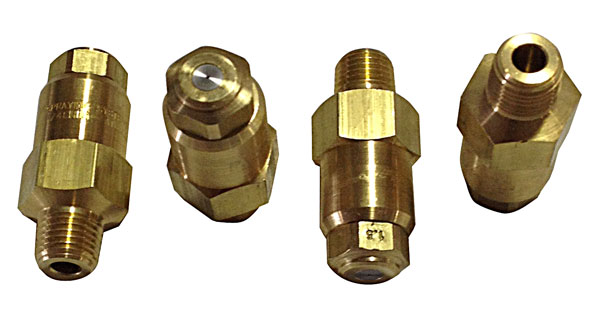

Atomizing Spray Head is used with HM-630 Moisture Room Control Panel and installed on water lines to distribute moisture throughout the concrete curing room. The approximate flow rate is 1.5gph (5.7lph), dependent upon water pressure. Its atomizing spray pattern does not require compressed air. The 2in (51mm) long spray head with a 1/4in male NPT thread bard is made of brass with a stainless steel nozzle for easy cleaning. It is sold as a single unit, and the number of spray heads required is based on the room dimensions.

Features:

• All brass construction
• Flow rate approximately 1.5gal per hour
• Works without compressed air

Included Items:

• Atomizing Spray Head
