8" Sieve, Brass/Stainless, 8" Deep, #140

Model: WT-88C #140
More Information
$206.1500
Price: $206.15

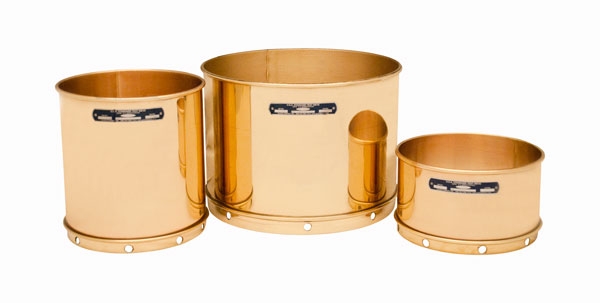

8in (203mm) diameter ASTM E11 Deep Frame Wet-Wash Test Sieve is constructed of brass frame and stainless steel mesh with No.140 (106µm) openings. Overall frame depth is 8in (203mm).

Features:

  • Optimal for fines content determinations or sample preparation for particle size testing
  • Compliant with ASTM E11
  • Deep frames contain wash water
  • Nesting capability with standard sieves

Included Items

  • 8in (203mm) Deep Frame Wet-Wash Sieve, Brass Frame / Stainless Steel Mesh, 8in (203mm) depth
  • Certificate of Conformance to ASTM E11 requirements

Optional Accessories

  • Sieve Pans nest underneath sieves to collect fines
  • Sieve Covers prevent sample loss during agitation
  • Verification Services provide NIST traceable documentation of opening sizes
Sieve Frame Diameter 8in (203mm)
Frame Height Above Cloth 8in (203mm)
Material Brass Frame / Stainless Steel Mesh
ASTM E11 Opening Size No.140 (106µm)
Backing Cloth Included No
  • Question: What do you mean by backing cloth? What is this used for?
    • Answer: Backing cloth is designed to prevent sagging and tearing of fine mesh for longer service life of the Wet Wash Sieve. #35 stainless steel mesh is located below the primary sieve cloth to increase the strength of the sieve and reduce the distortion of the openings during use.

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Sieve Frame Diameter 8in (203mm)
Frame Height Above Cloth 8in (203mm)
Material Brass Frame / Stainless Steel Mesh
ASTM E11 Opening Size No.140 (106µm)
Backing Cloth Included No
Meets Standard(s):
