8" Sieve, Brass/Stainless, 4" Deep, #100

Model: WT-84C #100
More Information
$206.1500
Price: $206.15

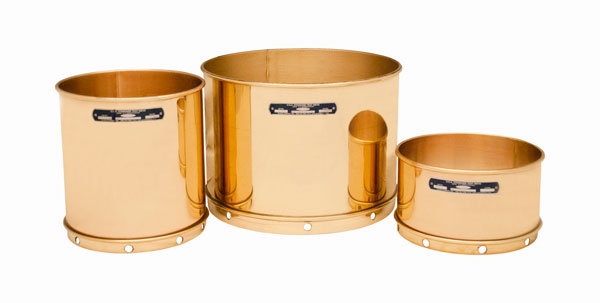

8in (203mm) diameter ASTM E11 Deep Frame Wet-Wash Test Sieve is constructed of brass frame and stainless steel mesh with No.100 (150µm) openings. Overall frame depth is 4in (102mm).

Features:

  • Optimal for fines content determinations or sample preparation for particle size testing
  • Compliant with ASTM E11
  • Deep frames contain wash water
  • Nesting capability with standard sieves

Included Items

  • 8in (203mm) Deep Frame Wet-Wash Sieve, Brass Frame / Stainless Steel Mesh, 4in (102mm) depth
  • Certificate of Conformance to ASTM E11 requirements

Optional Accessories

  • Sieve Pans nest underneath sieves to collect fines
  • Sieve Covers prevent sample loss during agitation
  • Verification Services provide NIST traceable documentation of opening sizes
ASTM E11 Opening Size No.100 (150µm)
Sieve Frame Diameter 8in (203mm)
Frame Height Above Cloth 4in (102mm)
Material Brass Frame / Stainless Steel Mesh
Backing Cloth Included No

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

ASTM E11 Opening Size No.100 (150µm)
Sieve Frame Diameter 8in (203mm)
Frame Height Above Cloth 4in (102mm)
Material Brass Frame / Stainless Steel Mesh
Backing Cloth Included No
Meets Standard(s):
