6,000g Pycnometer

Model: SG-15
$577.5000
Price: $577.50
Product Files

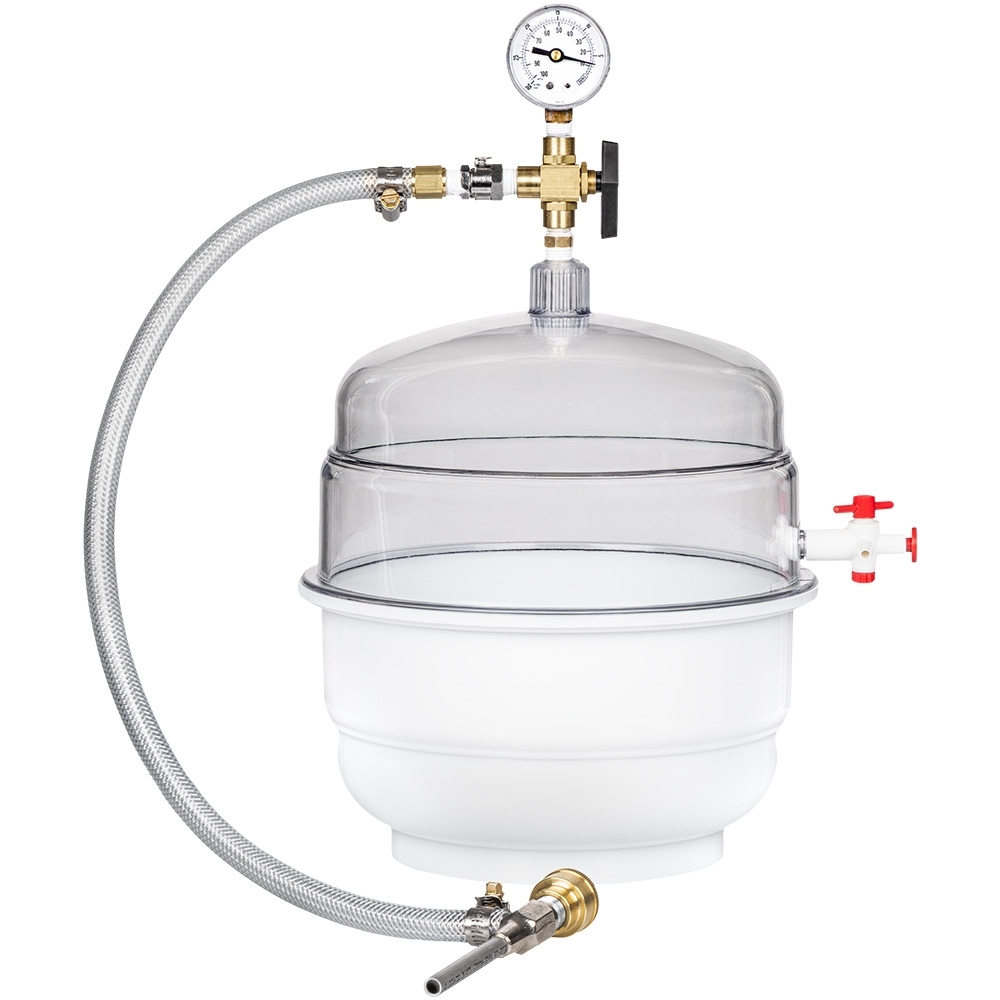

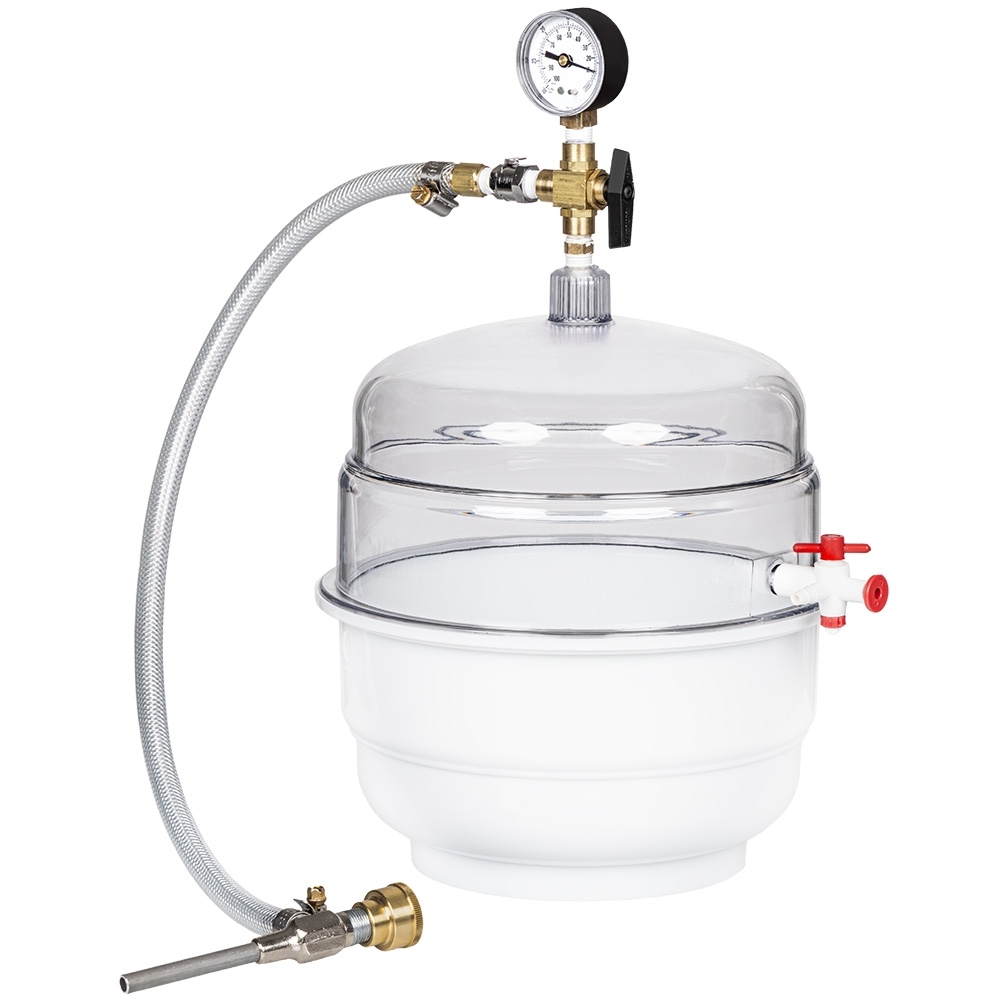

The SG-15 6,000g Pycnometer meets ASTM D2041 and AASHTO T209 specifications and is suited for mixes with aggregates up to 2in (51mm). The large, 10L capacity pycnometer is a high-strength plastic vessel with 9.38in (238mm) I.D. and an O-Ring seal to prevent leakage. An adjustable valve controls water level, and a perforated plastic shelf to support three 4in (102mm) specimens is included. Also included is a threaded Sink Aspirator vacuum source with tubing and a quick disconnect.

Features:

  • Optimal for mixes with aggregates up to 2in (51mm)
  • O-Ring design seal prevents leakage
  • Complete user control of water level with adjustable valve

Included Items:

  • 6,000g Pycnometer
  • Perforated plastic shelf
  • Vacuum Aspirator with tubing

Optional Accessories:

Dimensions 10.75 x 13.3in (273 x 338mm), Dia. x H
Estimated Shipping Weight, lb (kg) 15lb (7kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Dimensions 10.75 x 13.3in (273 x 338mm), Dia. x H
Estimated Shipping Weight, lb (kg) 15lb (7kg)
Meets Standard(s):
