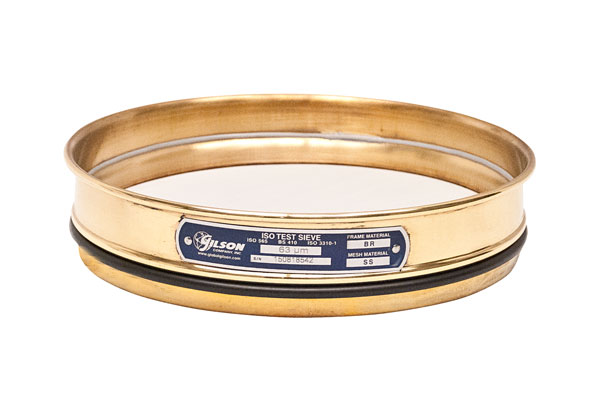

200mm Sieve, Brass/Stainless, Half Height, 11.2mm

Model: V200CH 11.2M
More Information
$57.5000
Price: $57.50

200mm diameter ISO Test Sieve has stainless steel woven-wire cloth with 11.2mm openings and half height brass frame. Each sieve is individually serial numbered. Overall height is 1-5/8in and stacked height is 1-1/8in.

Features:

  • Individually serial numbered
  • Compliant with ISO 565, 3310-1 requirements for Compliance Sieves

Included Items:

  • 200mm Sieve, Brass/Stainless, Half Height, 11.2mm
  • Certificate of Conformance to ISO 565, 3310-1 requirements

Optional Accessories:

  • Sieve Pans nest underneath sieves to collect fines
  • Sieve Covers prevent sample loss during agitation
  • Verification Services provide NIST traceable documentation of opening sizes
Sieve Frame Diameter 200mm
Frame Height Half Height
Stacked Frame Height 1-1/8in
Overall Frame Height 1-5/8in
Material Brass Frame / Stainless Steel Mesh
Backing Cloth Included No
ISO 565, 3310-1 Opening Size 11.2mm
Estimated Shipping Weight, lb (kg) 1.0lbs / 0.45kg
