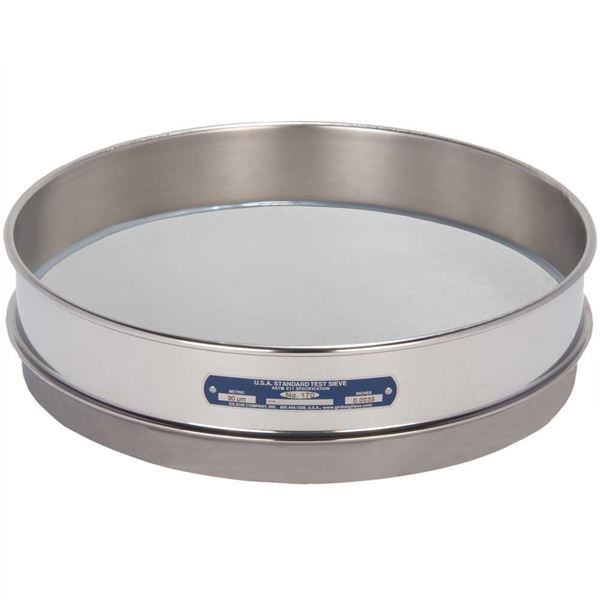

12" Sieve, All Stainless, Intermediate Height, No. 170 Mesh

Model: V12SI #170
More Information
$102.0000
Price: $102.00

12in (305mm) diameter ASTM E11 Test Sieve has stainless steel woven-wire cloth with No.170 (90µm) openings and intermediate height stainless steel frame. Each sieve is individually serial numbered. Overall height is 3in and stacked height is 2-1/8in. This sieve is optionally available fitted with #35 (500µm) stainless steel backing cloth for enhanced durability. To order with backing cloth, please see V12SI #170 BU.

Features:

  • Individually serial numbered
  • Compliant with ASTM E11 requirements for Compliance Sieves

Included Items:

  • 12” Sieve, All Stainless, Intermediate Height, No. 170 Mesh
  • Certificate of Conformance to ASTM E11 requirements

Optional Accessories:

  • Sieve Pans nest underneath sieves to collect fines
  • Sieve Covers prevent sample loss during agitation
  • Verification Services provide NIST traceable documentation of opening sizes
Sieve Frame Diameter 12in (305mm)
Frame Height Intermediate Height
Stacked Frame Height 2-1/8in
Overall Frame Height 3in
Material All Stainless Steel
ASTM E11 Opening Size No.170 (90µm)
Backing Cloth Included No
Estimated Shipping Weight, lb (kg) 4.0lbs / 1.81kg

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Sieve Frame Diameter 12in (305mm)
Frame Height Intermediate Height
Stacked Frame Height 2-1/8in
Overall Frame Height 3in
Material All Stainless Steel
ASTM E11 Opening Size No.170 (90µm)
Backing Cloth Included No
Estimated Shipping Weight, lb (kg) 4.0lbs / 1.81kg
